telecommunications technology, signal transmission and measured data distribution systems

laid into or under the plaster, in dry or moist environment

J - installation cable

Y - PVC conductor insulation

(ST) - electrostatic screen

Y - PVC jacket

LG - position assembly

ST III - low-frequency cross quad

BD - group assembly

DIN VDE 0815

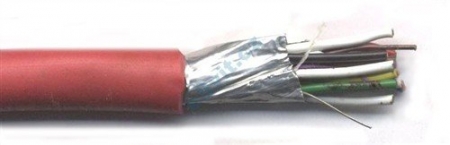

core - full bare Cu conductor with a diameter of 0.6 or 0.8 mm

conductor insulation - PVC

transmission element - four twisted conductors (cross quad)

core - multiple twisted conductors

belt insulation

sheath CuSn wire with a diameter of 0.6 or 0.8mm

shielding - thermoplastic metal-coated tape

jacket- PVC, grey

Permissible temperatures for installation and assembly: -5 °C - 50 °C

Operating and storage temperatures: -40 °C - 70 °C

Minimum permitted bend radius: 10D

Cable service life min.: 30 years

D - Cable diameter above the jacket

rings

cable reels

cable drums
