Irrigation Pump-3 - YPS-HM

Irrigation Pump-3

Item No.: YPS-HM
Supplier Details
XIANGSHENG MACHINERY & ELECTRIC INDUSTRIAL CO., LTD.
Country: Taiwan
City: Tainan City 709
Address: 1F., No. 68, Gongye 1st Rd., Annan Dist.
TEL: +886-06-3843601
Fax: +886-06-3843682
Online Showroom: 32 Products

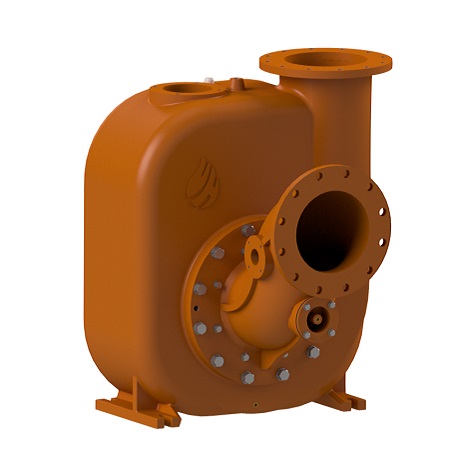

Self priming water pump

Application：
  • Drainage works, irrigation in agriculture.
Principle：
  • This pump can exhaust the air inside pipe without any vacuum supporting device. Before starting up the pump, add water to cover the impeller first. After starting the pump, the impeller spins at the high speed will push the water out to the casing chamber. At this moment inlet side becomes vacuum condition. The air enters into the pump and goes along the edge of the impeller. Finally the air will be exhausted from the release device.
Flow rate：108 m³/h - 1800 m³/h
Total head：8 m - 16.5 m
Material：
  1. Casing：cast iron or customization
  2. Impeller：stainless steel or customization
  3. Shaft：stainless steel or customization
  4. Mechanical seal：silicon carbide or customization
Source：Taiwan
Pipe diameter：4", 6", 10" 12"
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Irrigation Pump-3

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
