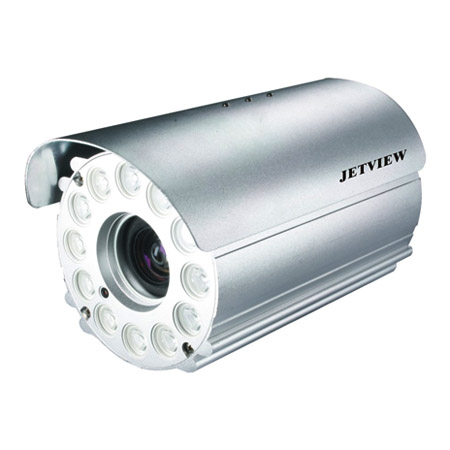

IR Waterproof Camera
Item No.: | 16 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom:
57 Products
Key Features:
* 1/3" Sony CCD
* Resolution: 420TVL/540TVL
* IR Radiation Range: 100m
* OSD Menu
* Varifocus Lens: 18 x Zoom, 22 x Zoom
* Water-Proof: IP66
* Operation Temperature: -10
* With IR Cut Filter
* With Heater & Fan
Specification
* 1/3" Sony CCD
* Resolution: 420TVL/540TVL
* IR Radiation Range: 100m
* OSD Menu
* Varifocus Lens: 18 x Zoom, 22 x Zoom
* Water-Proof: IP66
* Operation Temperature: -10
* With IR Cut Filter
* With Heater & Fan
Specification
Model | JW-6116PD | JW-6216PD | JW-6516PD |
JW-6116ND | JW-6216ND | JW-6516ND | |
Image Sensor | 1/3" Sony | ||
Signal System | PAL/NTSC | ||
Effective Pixels | PAL: 500(H)×582(V) | PAL: 752(H)×582(V) | |
NTSC: 510(H)×492(V) | NTSC: 768(H)×494(V) | ||
Horizontal Resolution | 420TVL | 540TVL | |
Minimum Illumination | 0.5Lux/F1.2 | 0.8Lux/F1.2 | |
0 Lux( Less than Lux, IR-LED on) | |||
Synchronization System | Internal | ||
Day/Night Switch | Automatic( with IR Cut Filter) | ||
Infrared Led Wavelength | 850nm | ||
Infrared Effective Range | 100m | ||
Infrared Led | ∮8, 12PCS | ||
S/N Radiation | More than 48dB | ||
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | ||
White Balance | Automatic | ||
Video Output | BNC 1.0Vp-p, 75Ohm | ||
Zoom | 22x | 23x | 18x |
Lens | 3.9-85.8mm | 3.82-88.4mm | 4.1-73.8mm |
Power Supply | AC220V / AC110V | ||
Pover Consumption | 40W | ||
Operation Condition | -20℃~65℃, RH85% (Max.), with Heater | ||
Material of Boday | Aluminum Alloy | ||
Waterproof | IP66 | ||
Net Weight | 4.3KG | ||
Gross Weight | 5.0KG | ||
Product Dimension | 280x158x160mm | ||
Pckage Dimension | 355x200x205mm (L×W×H) |
