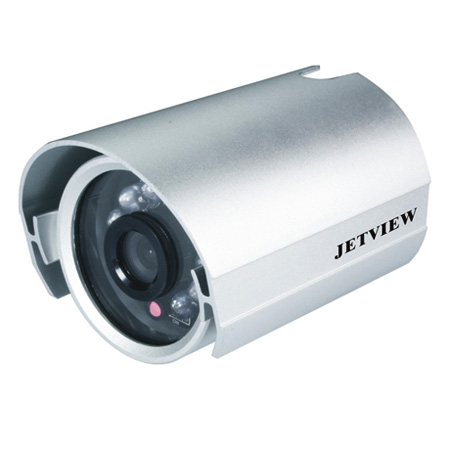

IR Waterproof Camera
Item No.: | 61 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom:
57 Products
Key Features:
* Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 15-20m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
Specification
* Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 15-20m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
Specification
Model | JV-1M61PD | JV-1C61PD | JV-1A61PD |
JV-1M61ND | JV-1C61ND | JV-1A61ND | |
Image Sensor | 1/3" Sony Super HAD | 1/3" Sony Super HAD II | |
Signal System | PAL/NTSC | ||
Effective Pixels | PAL: 500(H)×582(V) | PAL: 752(H)×582(V) | |
NTSC: 510(H)×492(V) | NTSC: 768(H)×494(V) | ||
Horizontal Resolution | 420TVL | 540TVL | |
Minimum Illumination | 0.5Lux/F1.2 | 0.01Lux/F1.2 | 0.03Lux/F1.2 |
Synchronization System | Internal | ||
Day/Night Switch | Automatic | ||
Infrared Led Wavelength | 850nm | ||
Infrared Effective Range | 15m | ||
Infrared Led | ∮8, 10PCS | ||
S/N Radiation | More than 48dB | More than 50dB | |
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | ||
White Balance | Automatic | ||
Video Output | BNC 1.0Vp-p, 75Ohm | ||
Lens | 4mm, 6mm, 8mm (Optional) | ||
Power Supply | DC12V | ||
Consumed Current | 350mA (Max.) | ||
Operation Condition | -20℃~65℃, RH85% (Max.) | ||
Material of Boday | Aluminum Alloy | ||
Waterproof | IP66 | ||
Net Weight | 380G | ||
Gross Weight | 490G | ||
Product Dimension | 109×74×67mm (L×W×H) | ||
Pckage Dimension | 170×115×105mm (L×W×H) |
