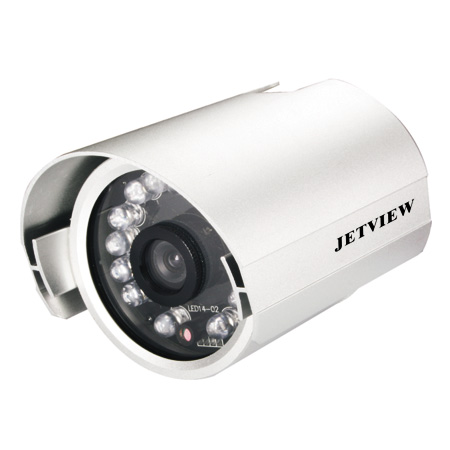

IR Waterproof Camera - 75 Series

IR Waterproof Camera

Item No.: 75 Series
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom: 57 Products
Key Features:
* Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 20-25m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃

Specification
ModelJV-1M75PDJV-1C75PDJV-1A75PD
JV-1M75NDJV-1C75NDJV-1A75ND
Image Sensor1/3" Sony Super HAD1/3" Sony Super HAD II
Signal SystemPAL/NTSC
Effective PixelsPAL: 500(H)×582(V)PAL: 752(H)×582(V)
NTSC: 510(H)×492(V)NTSC: 768(H)×494(V)
Horizontal Resolution420TVL540TVL
Minimum Illumination0.5Lux/F1.20.01Lux/F1.20.03Lux/F1.2
Synchronization SystemInternal
Day/Night SwitchAutomatic
Infrared Led Wavelength850nm
Infrared Effective Range20m
Infrared Led∮8, 14PCS
S/N RadiationMore than 48dBMore than 50dB
Electronic Shutter Speed1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC)
White BalanceAutomatic
Video OutputBNC 1.0Vp-p, 75Ohm
Lens4mm, 6mm, 8mm (Optional)
Power SupplyDC12V
Consumed Current450mA (Max.)
Operation Condition -20℃~65℃, RH85% (Max.)
Material of BodayAluminum  Alloy
WaterproofIP66
Net Weight570G
Gross Weight660G
Product Dimension126×62×85mm (L×W×H)
Pckage Dimension170×115×105mm (L×W×H)
