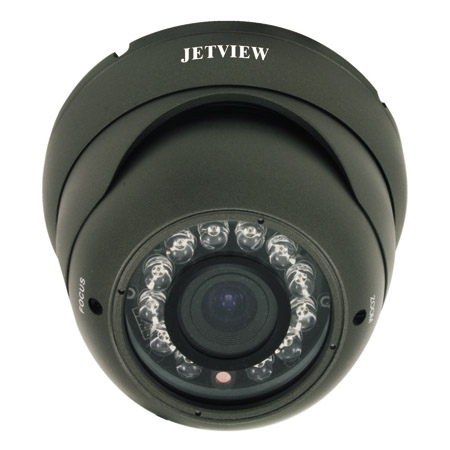

IR Dome Camera
Item No.: | X5 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom:
57 Products
Key Features:
* Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 20-25m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
Specification
* Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 20-25m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
Specification
Model | JV-1MX5PD | JV-1CX5PD | JV-1AX5PD | |
JV-1MX5ND | JV-1CX5ND | JV-1AX5ND | ||
Image Sensor | 1/3" Sony Super HAD | 1/3" Sony Super HAD II | ||
Signal System | PAL/NTSC | |||
Effective Pixels | PAL: 500(H)×582(V) | PAL: 752(H)×582(V) | ||
NTSC: 510(H)×492(V) | NTSC: 768(H)×494(V) | |||
Horizontal Resolution | 420TVL | 520TVL | 540TVL | |
Minimum Illumination | 0.5Lux/F1.2 | 0.01Lux/F1.2 | 0.03Lux/F1.2 | |
Synchronization System | Internal | |||
Day/Night Switch | Automatic | |||
Infrared Led Wavelength | 850nm | |||
Infrared Effective Range | 25m | |||
Infrared Led | ∮8, 12PCS | |||
S/N Radiation | More than 48dB | More than 50dB | ||
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | |||
White Balance | Automatic | |||
Video Output | BNC 1.0Vp-p, 75Ohm | |||
Lens | 4-9mm | |||
Power Supply | DC12V | |||
Current Consumption | 175mA(Max.)+225mA(Max. when led is on) | |||
Operation Condition | -20℃~65℃, RH85% (Max.) | |||
Material of Boday | Aluminum Alloy | |||
Waterproof | IP66 | |||
Net Weight | 750G | |||
Gross Weight | 820G | |||
Product Dimension | 119 x 83.6mm (D x H) | |||
Pckage Dimension | 130 x 130 x 90mm (L×W×H) |
