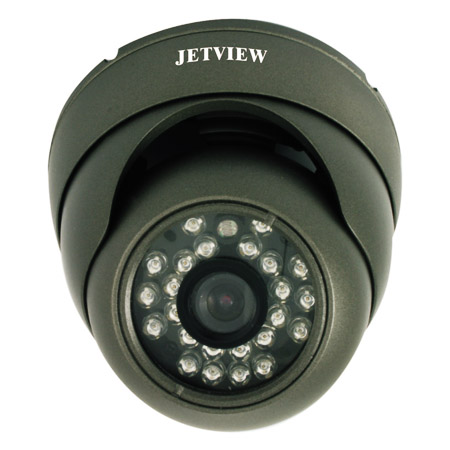

IR Dome Camera
Item No.: | X4 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom:
57 Products
Key Features:
* Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 10-15m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
Specification
* Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 10-15m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
Specification
Model | JV-1RX4PD | JV-1MX4PD | JV-1CX4PD | JV-1AX4PD |
JV-1RX4ND | JV-1MX4ND | JV-1CX4ND | JV-1AX4ND | |
Image Sensor | 1/4" Sony | 1/3" Sony Super HAD | 1/3" Sony Super HAD II | |
Signal System | PAL/NTSC | |||
Effective Pixels | PAL: 500(H)×582(V) | PAL: 752(H)×582(V) | ||
NTSC: 510(H)×492(V) | NTSC: 768(H)×494(V) | |||
Horizontal Resolution | 420TVL | 540TVL | ||
Minimum Illumination | 0.8Lux/F1.2 | 0.5Lux/F1.2 | 0.01Lux/F1.2 | 0.03Lux/F1.2 |
Synchronization System | Internal | |||
Day/Night Switch | Automatic | |||
Infrared Led Wavelength | 850nm | |||
Infrared Effective Range | 15m | |||
Infrared Led | ∮5, 24PCS | |||
S/N Radiation | More than 48dB | More than 50dB | ||
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | |||
White Balance | Automatic | |||
Video Output | BNC 1.0Vp-p, 75Ohm | |||
Lens | 4mm, 6mm, 8mm (Optional) | |||
Power Supply | DC12V | |||
Consumed Current | 350mA (Max.) | |||
Operation Condition | -20℃~65℃, RH85% (Max.) | |||
Material of Boday | Aluminum Alloy | |||
Waterproof | IP66 | |||
Net Weight | 410G | |||
Gross Weight | 450G | |||
Product Dimension | 46.5 x 32.9mm (D×H) | |||
Pckage Dimension | 55 x 55 xx 39mm (L×W×H) |
