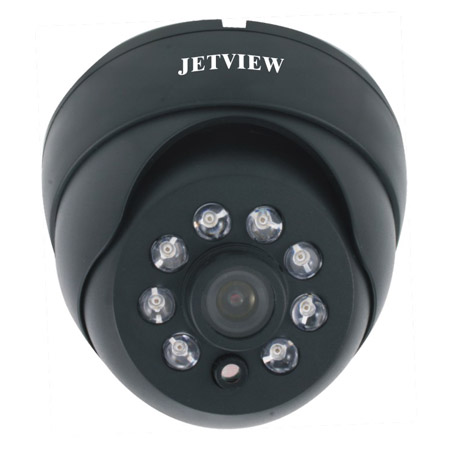

IR Dome Camera
Item No.: | X3 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom:
57 Products
Key Features:
* 1/3" Sharp, Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 10-15m
* Water-Proof: IP65
* Operation Temperature: -20℃~65℃
Specification
* 1/3" Sharp, Sony Super HAD II
* Resolution: 420TVL/540TVL
* IR Radiation Range: 10-15m
* Water-Proof: IP65
* Operation Temperature: -20℃~65℃
Specification
Model | JT-1WX3PD | JV-1RX3PD | JV-1MX3PD | JV-1CX3PD | JV-1AX3PD |
JT-1WX3ND | JV-1RX3ND | JV-1MX3ND | JV-1CX3ND | JV-1AX3ND | |
Image Sensor | 1/3" Sharp | 1/4" Sony | 1/3" Sony Super HAD | 1/3" Sony Super HAD II | |
Signal System | PAL/NTSC | ||||
Effective Pixels | PAL: 512(H)×582(V) | PAL: 500(H)×582(V) | PAL: 752(H)×582(V) | ||
NTSC: 512(H)×492(V) | NTSC: 510(H)×492(V) | NTSC: 768(H)×494(V) | |||
Horizontal Resolution | 420TVL | 540TVL | |||
Minimum Illumination | 1.0Lux/F1.2 | 0.8Lux/F1.2 | 0.5Lux/F1.2 | 0.01Lux/F1.2 | 0.03Lux/F1.2 |
Synchronization System | Internal | ||||
Day/Night Switch | Automatic | ||||
Infrared Led Wavelength | 850nm | ||||
Infrared Effective Range | 15m | ||||
Infrared Led | ∮8, 8PCS | ||||
S/N Radiation | More than 48dB | More than 50dB | |||
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | ||||
White Balance | Automatic | ||||
Video Output | BNC 1.0Vp-p, 75Ohm | ||||
Lens | 4mm, 6mm, 8mm (Optional) | ||||
Power Supply | DC12V | ||||
Consumed Current | 150mA(Max) + 250mA (LED on) | ||||
Operation Condition | -20℃~65℃, RH85% (Max.) | ||||
Material of Boday | Plastic | ||||
Waterproof | IP66 | ||||
Net Weight | 170G | ||||
Gross Weight | 210G | ||||
Product Dimension | 93 x 70mm (D×H) | ||||
Pckage Dimension | 102 x 102 x 84mm (L×W×H) |
