IR Cut Filters
| Item No.: | IR650C |
Supplier Details
Country: Taiwan
City: TAINAN CITY 709
Address: NO.59,KEJI 5TH TD.ANNAN DISTRICT
TEL: +886-6-3841411
Fax: +886-6-3841409
Online Showroom:
21 Products
IR Cut Filter:
1.IR cut filter is often used in the protection of the need to avoid thermal injury to the optical system, by reflecting infrared light, but also the direction of the heat radiates back to the source.
2.IR cut filter on the lens digital camera CCD, CMOS sensor is very important, because these sensors are usually too sensitive to infrared light, the image will cause color cast or appear to detect the human eye but can not image. Therefore it can be adjusted closer to the human eye image sensor status.
【Application】
CCD, CMOS sensor、 Infrared sensor
IR Cut Filter on Sodaime glass
1.IR cut filter is often used in the protection of the need to avoid thermal injury to the optical system, by reflecting infrared light, but also the direction of the heat radiates back to the source.
2.IR cut filter on the lens digital camera CCD, CMOS sensor is very important, because these sensors are usually too sensitive to infrared light, the image will cause color cast or appear to detect the human eye but can not image. Therefore it can be adjusted closer to the human eye image sensor status.
【Application】
CCD, CMOS sensor、 Infrared sensor
IR Cut Filter on Sodaime glass
| Material | IR Cut Filter on Sodalime glass |
| Surface Quality | 60/40 scratch and dig |

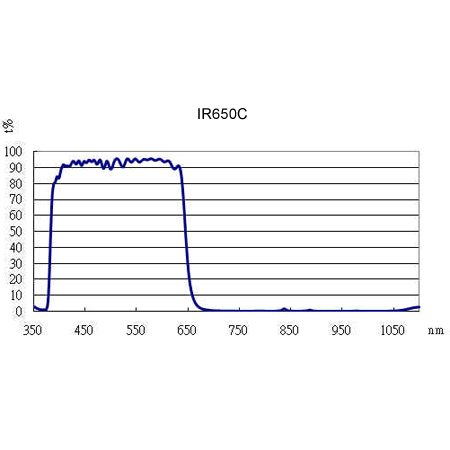

| Ref Wavelength | T50% @ 650 ± 10 (nm) |
| T ave > | 90% @ 420 ～ 620 (nm) |
| T ave < | 3% @ 690 ～ 1050 (nm) |
| Item | Size | Qty | Total Price | Paypal |
| ① | Rectangles : 423 × t1.1 (±0.2) mm | 10 pcs | USD $2830 | ◇ |
| ② | Diameter : ∅460 × t1.1 (±0.2) mm | 10 pcs | USD $5470 |
