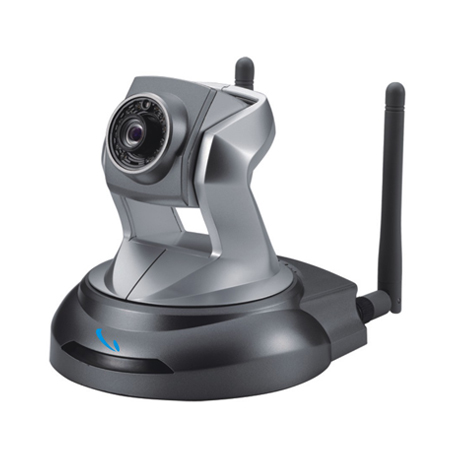

![IP Network Cameras - ANC-818GHA [PT 1M]](/media/product/545/96c295d9a313b05f61bcd39f4bd190eb_b "IP Network Cameras - ANC-818GHA [PT 1M]")
IP Network Cameras
| Item No.: | ANC-818GHA [PT 1M] |
- Support easy installation with NAT transversal DDNS server for port setting free
- Support H.264 /MPEG4 / MJPEG multi- codec and multi-streaming
- Support connectivity with various kind of browser including Firefox, Chrome, Safari and Opera
- Support connectivity with smart phone, iPhone and pocket-PC
- Support ONVIF
- Support RTSP - Real Time Streaming Protocol
- Support Wi-Fi Protected Setup - WPS Key for easy wireless setup (Wireless model only)
- Build-in Samba function to store image/video at local area network directly
- Build-in microphone for audio monitoring
- Build-in SD Card slot for easy storing and playback image/video
- Build-in USB hard disc slot
- Build-in Motion Detection & Email Notification
- Up to 30fps at 1280 * 800 of video resolution
- 12 IR LEDs with ICR and auto light sensor for day and night monitoring
- Adjustable manual focus, auto white balance, auto exposure control
- Free bundled 64CH recording software
- Pan: Range 355 degree, Tilt: Range 135 degree
- Dimension: 105 * 105 * 100 (mm)
- Package: Camera, Power Adapter, Camera stand, Installation Software & Manual on CD, Quick
- Installation Guide, Antenna (for wireless model only)
- Viewing System Requirement:
Operating system - Microsoft Windows XP / Vista / 7
Browser - Internet Explorer 6.x or above, Firefox, Chrome, Safari and Opera
Technical Specifications:
|
- System RAM: 2GB DDR ROM: 16MB Flash ROM |
- Camera specification 1/4 inch color CMOS sensor, Resolution: 1280 x 800 1.3Lux/F2.0 AGC, AWB, AEC |
|
- Infrared Led Auto/ manual mode Daylight sensor, angle +/-65, wave length 400~700nm Spectral band width 42nm, Peak emission wavelength 850nm |
- Audio AMR/ G726 Omni-directional Microphone |
|
- Protocol TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, Telnet, NTP, PPPoE, DNS, DHCP and RTSP |
- Lens Fixed focal with fine tuning, 4.0mm, F2.0 View angle 62 degree |
|
- WLAN 802.11b/g /n wireless LAN - Security WEP/WPA-PSK/ WPA2-PSK |
- Video Resolution Up to 30 frames at 1280 x 800, 640 x 480, 320 x 240 and 176 x144 Support e-PTZ |
|
- Algorithm supported H.264 / MPEG4/ MJPEG multi-codec for streaming video JPEG for still image |
- Pan/Tilt angle Support multi - direction movement Pan : Range 355 degree, Tilt : Range 135 degree |
|
Physical 10 baseT or 100 baseT Fast Ethernet auto negotiation |
- Power Input: 100-240VAC, 50/60Hz, 0.7A Output: 12VDC,1.5A Consumption: Max 12W |
|
- EMI & Safety CE, FCC |
- Dimension 105 x 105 x 110 (mm) |
|
- Operating Environment Temperature : 0 - 40℃ Humidity : 85% RH |
- Weight NET. 355g (Wired Model) NET. 365g (Wireless Model) |
