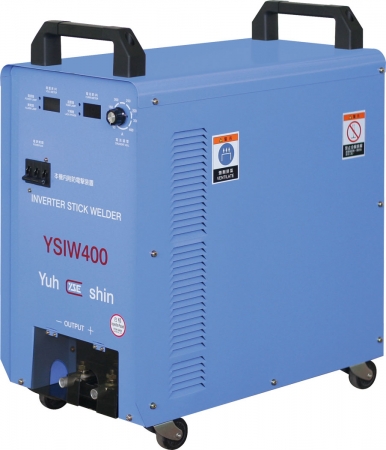

Inverter ARC/Stick Welder
| Item No.: | YSIW-400 |
Supplier Details
Country: Taiwan
City: Taichung
Address: No. 22, Gongyequ, 42nd Rd., Xitun Dist., Taichung City 407, Taiwan.
TEL: +886-4-23595358
Fax: +886-4-23597368
Online Showroom:
30 Products
Product Feature:
1. saving power: more than 50%
2. used IGBI semi-conductor
3. saving power line cost : more than 50% compare with general electric welding machine
4. light weight and easy hand carry
5. DC output current
6. inside with DIP switch
7. anti-electric shock device
Specification:
Model no.: YSIW-400
Input voltage: single phase/three phase, 220V(200V)
Output current range: 50A - 400A
Duty Cycle: 50%
Load Voltage: 38V
Max No Load Voltage: 75V (70V)
Welding Rod: 2.6 mm - 5.0 mm
Weight : 50kgs
Dimension: (W)300 x (D)640 x (H)550 mm
1. saving power: more than 50%
2. used IGBI semi-conductor
3. saving power line cost : more than 50% compare with general electric welding machine
4. light weight and easy hand carry
5. DC output current
6. inside with DIP switch
7. anti-electric shock device
Specification:
Model no.: YSIW-400
Input voltage: single phase/three phase, 220V(200V)
Output current range: 50A - 400A
Duty Cycle: 50%
Load Voltage: 38V
Max No Load Voltage: 75V (70V)
Welding Rod: 2.6 mm - 5.0 mm
Weight : 50kgs
Dimension: (W)300 x (D)640 x (H)550 mm
