| Item No.: | NA552 |
Supplier Details
Country: Taiwan
City: New Taipei City 231
Address: 8F, No. 4, Lane 235, Baoqiao Road, Xindian District
TEL: +886-2-29174550
Fax: +886-2-29173200
Online Showroom:
32 Products

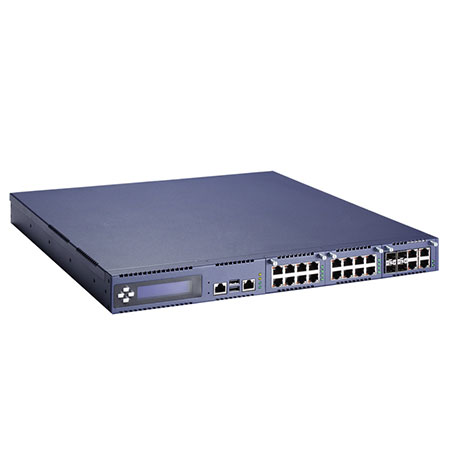

1U Rack-mount Network Appliance Platform LGA1155 Socket Intel® Xeon® E3/Core™ Family Processor, Intel® C216 and up to 26 LANs
• LGA1155 socket Intel® Xeon® E3/ 3rd & 2nd gen Core™ family processor
• Four DDR3-1333 U-DIMM, up to 32 GB memory
• Max. up to twenty-six 10/100/1000 Mbps Ethernet ports (Intel® i210AT/82580EB)
• Three expandable LAN modules supporting 1G/10G/Fiber/Copper/Bypass
• Supports 1U redundant power supply for optional
• Supports Intel® Data Plane Development Kit (Intel® DPDK)
• Suitable for VPN, network bandwidth controller and firewall applications
• Slim and compact design, the dimensions: 44 mm (1.73") (H) x 430 mm (16.93") (W) x 450mm (17.72") (D)
• Welcome customization service
The NA552 is an extremely high-performance 1U rackmountable network appliance platform with maximum 26 Gigabit Ethernet ports and up to 12 LAN bypass segments for medium and enterprise business markets. The outstanding NA552 supports the 3rd Generation Intel® Xeon® processor E3 series with Intel® C216 chipset as well as supports four high bandwidth DDR3 1333 MHz un-buffered non-ECC/ECC DIMM sockets with up to 32 GB memory. For greater flexible and easy maintenance, the NA552 has three front-accessible expansion slots that allow developers to configure PCIe LAN modules based on their solution requirements. With its friendly design and high capacity, this powerful network appliance is suited for IDS/IPS, VPN, content filtering, UTM, network security applications, and cloud computing solutions.
• LGA1155 socket Intel® Xeon® E3/ 3rd & 2nd gen Core™ family processor
• Four DDR3-1333 U-DIMM, up to 32 GB memory
• Max. up to twenty-six 10/100/1000 Mbps Ethernet ports (Intel® i210AT/82580EB)
• Three expandable LAN modules supporting 1G/10G/Fiber/Copper/Bypass
• Supports 1U redundant power supply for optional
• Supports Intel® Data Plane Development Kit (Intel® DPDK)
• Suitable for VPN, network bandwidth controller and firewall applications
• Slim and compact design, the dimensions: 44 mm (1.73") (H) x 430 mm (16.93") (W) x 450mm (17.72") (D)
• Welcome customization service
The NA552 is an extremely high-performance 1U rackmountable network appliance platform with maximum 26 Gigabit Ethernet ports and up to 12 LAN bypass segments for medium and enterprise business markets. The outstanding NA552 supports the 3rd Generation Intel® Xeon® processor E3 series with Intel® C216 chipset as well as supports four high bandwidth DDR3 1333 MHz un-buffered non-ECC/ECC DIMM sockets with up to 32 GB memory. For greater flexible and easy maintenance, the NA552 has three front-accessible expansion slots that allow developers to configure PCIe LAN modules based on their solution requirements. With its friendly design and high capacity, this powerful network appliance is suited for IDS/IPS, VPN, content filtering, UTM, network security applications, and cloud computing solutions.
