Resin Impregnation
| Item No.: | Elantas 6183VT |
Supplier Details
Country: Taiwan
City: Taichung City 428017
Address: No. 12-1, Qiancun E. Rd., Daya Dist.
TEL: +886-4-25685848
Fax: +886-4-25685857
Online Showroom:
103 Products
Product Description
More
- Pedigree® 6183 VT is a 100%-reactive, unsaturated polyester resin in vinyl toluene monomer. It requires the addition of a peroxide catalyst for proper cure.

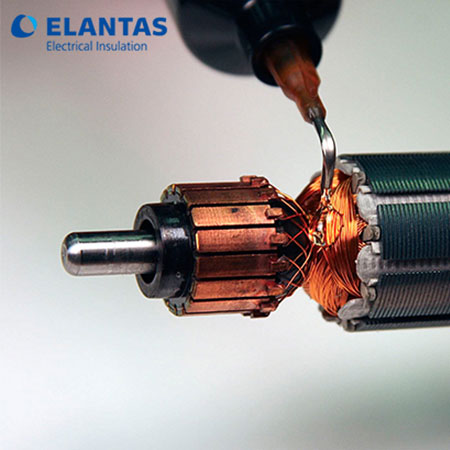

- Impregnation of motor windings including stators and high-speed armatures
- Chemically promoted for low temperature cure
- Low viscosity
- High bond strength at elevated temperature
- 20 day catalyzed pot life
- UL recognized insulation systems up to Class 240
- Trickle
- Dip-and-Bake
- Store below 25°C / 77°F in a dry controlled environment out of direct sunlight. This material should be suitable for use stored under these conditions in the original sealed containers for three (3) months from the date of shipment.
- Failure to store this product as recommended above may lead to deterioration in product performance.
- Refrigeration is recommended for long term storage. Keep containers tightly sealed to minimize evaporation.
- Mix product thoroughly before use
- For dip-and-bake application, catalyze no more resin than needed within pot life
- Refer to the Material Safety Data Sheet.
