Polyester Varnish
| Item No.: | Elantas 50 VTC |
Supplier Details
Country: Taiwan
City: Taichung City 428017
Address: No. 12-1, Qiancun E. Rd., Daya Dist.
TEL: +886-4-25685848
Fax: +886-4-25685857
Online Showroom:
103 Products
Product Description
More
- Pedigree® 50 VTC is a precatalyzed, 100%- reactive unsaturated polyester resin in vinyl toluene monomer.

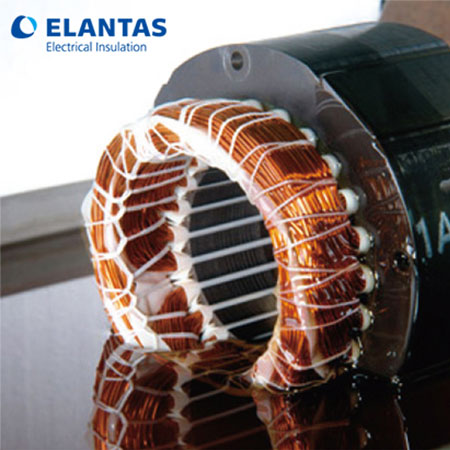

- Impregnation of small and large transformer windings
- Excellent electrical properties
- Compatible with a wide variety of magnet wire constructions
- Semi-flexible for noise suppression
- Low viscosity for excellent penetration
- Can be modified with mineral fillers to improve heat dissipation
- UL recognized insulation systems up to Class 240
- Conforms to MIL-I-24092-B
- Dip-and-Bake
- Vacuum Impregnation
- Vacuum-Pressure Impregnation
- Store below 25°C / 77°F in a dry controlled environment out of direct sunlight. This material should be suitable for use stored under these conditions in the original sealed containers for six (6) months from the date of shipment.
- Failure to store this product as recommended above may lead to deterioration in product performance.
- Keep containers tightly sealed to minimize evaporation. Refrigeration is recommended for long term storage
- Mix product thoroughly before use
- See ELANTAS PDG Technical Bulletin TI-4001 - Unsaturated Polyester Resin Maintenance for additional information.
- Refer to the Material Safety Data Sheet.
