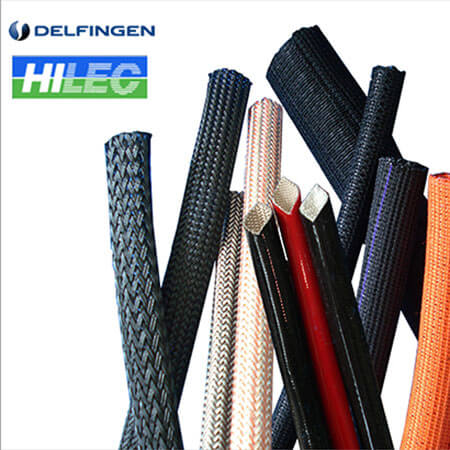

Thermal Protection Sleeves
| Item No.: | NU-FLEX HTS |
Supplier Details
Country: Taiwan
City: Taichung City 428017
Address: No. 12-1, Qiancun E. Rd., Daya Dist.
TEL: +886-4-25685848
Fax: +886-4-25685857
Online Showroom:
103 Products
Thermal Protection
Uncoated & Coated Sleeving
Uncoated braided fiberglass
Heat treated fiberglass
Saturated with acrylic binder
Black, natural (silver-gray)
Option: White, yellow, red, blue, green. Other colors upon request
Low: -70°C (-94°F)
High: 600°C (1112°F)
Insulation class: meet the requirement of class C rated at 240°C (464°F)
Options: Nu-Flex HTS-520: standard wall .020“
Nu-Flex HTS-532: heavy wall .032“
Thermal insulation
High temperature resistance
Abrasion resistance
UZIQ2 - E80713 - VW1 Rating
Nu-Flex HTS-520: MIL-Y-1140H, QPL 3190, NEMA TF2 - Type 3, ASTM E 162 - Surface flammability, Bombardier SMP 800-C Rev. 6 : Gas toxicity, ASTM E 662 : Rate of Smoke Generation, NFPA 130 specifications for transportation applications (mass transit, rail cars, locomotives)
Nu-Flex HTS-532: NEMA TF2 - Type 4
RoHS, REACH, CMRT
