Polyurethane Conformal Coating

Item No.:

CE-1155

Supplier Details

Country: Taiwan

City: Taichung City 428017

Address: No. 12-1, Qiancun E. Rd., Daya Dist.

TEL: +886-4-25685848

Fax: +886-4-25685857

Online Showroom: 103 Products

Product Description

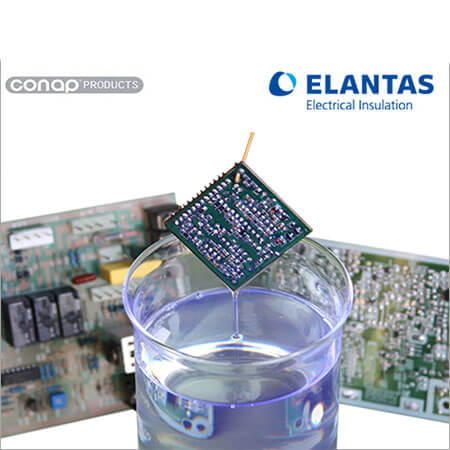

CONATHANE® CE-1155 is a two-component, transparent, fast-curing polyurethane conformal coating MIL-I-46058C.

Areas of Application

CONATHANE® CE-1155 provides an excellent electrical and moisture barrier for thin film applications on components and printed circuit boards.

Features and Benefits

QPL listed for MIL-I-46058C for Type UR
Excellent hydrolytic stability
UL94 V-0
Flexible coating
Excellent adhesion to phenolic and epoxy-glass laminates, even in harsh environments
Fluorescent under UV lighting

Application Methods

Transportation / Storage

Store at 20 – 30°C / 68 – 85°F in a dry controlled environment out of direct sunlight. This material should be suitable for use stored under these conditions in the original sealed containers for twelve (12) months from the date of shipment.
Failure to store the CONATHANE® CE-1155 products as recommended above may lead to deterioration in product performance.
This product is sensitive to moisture and atmospheric humidity. Containers, once opened, should be used immediately or blanketed with dry air or nitrogen (CONAP® Dri-Purge) before resealing.

Health / Safety

CAUTION: Material is flammable. Do NOT use in the presence of open flames or sparks.
Refer to the Safety Data Sheet for additional information.
