Industrial Peristaltic Pump - WS/WF/PX-300

Industrial Peristaltic Pump

Item No.: WS/WF/PX-300
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 6F.-10, No. 14, Ln. 609, Sec. 5, Chongyang Rd., Sanchong Dist.
TEL: +886-3-5368830
Fax: +886-3-5368891
Online Showroom: 101 Products

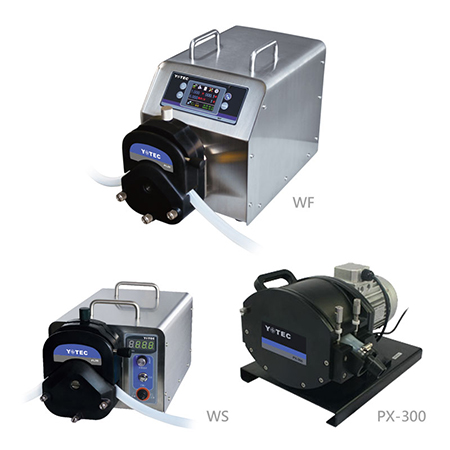

WS/WF/PX-300 Smart Industrial Peristaltic Pump
【Origin】
Taiwan

【Function and Feature】
  1. Stainless steel chassis preventing corrosion and simple to maintain.(WS/WF)
  2. Buttons control RPM, directions, start/stop and full speed, easy to operate.
  3. LED digital displaying RPM.
  4. Driven by DC brushless motor or step-less motor, no maintenance required.
  5. Circuit board coated with 3 layers to provide dust and damp proof.
  6. Applicable in industries requires large amount of fluid transfer.
  7. RS485 connection supporting MODBUS protocol easy to connect to variety of devices.
  8. Excellent anti-interruption design. Wide range voltage tolerance suitable for complex power supply environments.

【WF】
  1. High precision step motor, maintenance free.
  2. Can provide even more accurate fluid transfer and distribution.
  3. Equipped with full-colored touch screen.
  4. Flow rate calibration, infra-red control.
  5. 4 different operating modes: flow, volume, time and copy rationings with 5 sets of memory for each mode.

【PX-300】
  1. Large flow range, up to 2m^3 per hour, suitable for large flow transmission.
  2. High transmission pressure, suitable for high viscosity and high pressure transfer.
  3. Planetary gear design, safe and reliable, strong power.
  4. Planetary roller to reduce friction with hose and extend hose life.
  5. AC motor with speed controller can be connected with PLC, industrial computer.

WF 4 Different Modes:
  1. Flow: precisely dispense at set flow rate.
  2. Time: dispense fluid at a set period of time.
  3. Volume: dispense at a set volume.
  4. Copy: Set the total capacity and dispense number, the pump will do the math.

【Specs】


【Suitable Tubes and Pump Heads】

H:73#,82#
I:88#,92#,86#,90#

【Note】
  • Photos are for references only.
