IEEE 1394 A TYPE SOCKET DIP R/A 6PIN - IEECR-00630B0T2

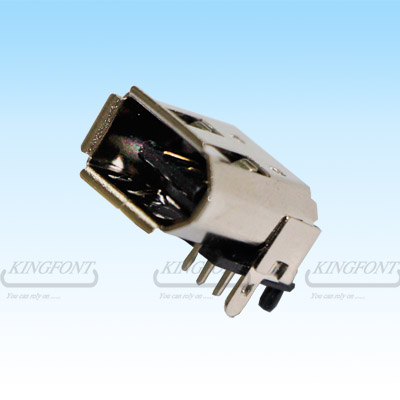

IEEE 1394 A TYPE SOCKET DIP R/A 6PIN

Item No.: IEECR-00630B0T2
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products


Product Name:IEEE 1394 A TYPE SOCKET DIP R/A 6PIN BLACK
Part No:IEECR-00630B0T2
                             (1)
         (1) Contact area plating:
                30: 30u” Gold plating
Pitch:1.0 mm
Number of port: 1
Circuits: 6
RoHS compliant
Net Weight: 2.37g
Packing: 100PCS/set of APET , 14 set of APET/PE bag , 2 PE bag/ carton


APPLICATION:
    Automobiles /Networking over FireWire IIDC/DV


SPECIFICATION:
   Electrical:
          1.      Current rating: 1.5 A MAX.
          2.      Voltage:40V MAX.
          3.      Withstanding voltage: 500V AC for 1 minute
          4.      Contact Resistance: terminal 30MΩ
          5.      Insulation Resistance: 100MΩ Min.
          6.      Durability: 1500 cycles
          7.      Unmating Force: 9.8 N to 39.2 N Max.

    Environmental:
          Operating temperature: -55℃ ~ 85℃
   MATERIAL:
          1.  Housing:PBT G.F   Color: Black
          2.  Pin Terminal:BRASS (t=0.25)
          3.  Shell:BRASS (t=0.4)


PRODUCT FEATURES:
       The IEEE 1394 compatible connector system consists of an assortment of six-pin shielded I/O connectors and accessories. Built around a robust ribbon style contact interface for reliable repetitive plug/unplug applications, the product’s contact is capable of carrying either signal or power, allowing designers flexibility in the location of power supplies to peripheral devices.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

IEEE 1394 A TYPE SOCKET DIP R/A 6PIN

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
