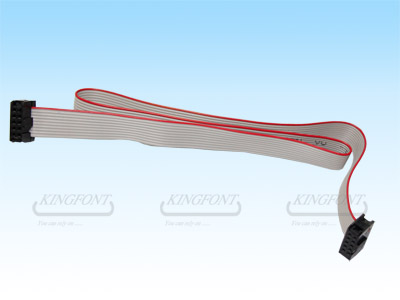

Product Name:Cable - IDC PH2.54-10P*2
Part No:CABF-10002-G
2*10 Pin 2.54mm Pitch IDC Connector
Flat Cable
Pitch: 1.27 mm
Length: 451 mm
RoHS compliant
Net
Weight: 11g
Packing:
5pcs/sheaf; 20 sheaves/package
APPLICATION:
Digital and Electronic products, such as computers,
printers, and camera.
SPECIFICATION:
Electrical:
Flat Cable:
Voltage
Rating: 300V
Impedance: 115Ω
Capacitance:
12.2pF/ft.
Propagation
Delay: 1.4ns/ft
Insulation
Resistance: 1GΩ/Mmin
IDC connector:
Current
Rating: 1.0 Amp
Contact resistance: 30mΩ Max. at 6V DC 0.3A
Insulator
resistance: 1000MΩ min. at 500V DC
Withstanding
Voltage: 500V AC/minute
Environmental:
Flat Cable:
Operating
temperature: -20℃ ~ 105℃
Flammability
Rating: UL-VW-1
UL Style: 2651
I
DC connector:
Operating
temperature: -40℃ ~ 105℃
MATERIAL:
Flat Cable:
Insulator Material: PVC
Conductor:
#28AWG(7*0.127)Tinned Copper
#26AWG(7*0.16)Tinned Copper
IDC connector:
Insulator
Material:PBT &Glass-fiber reinforced UL94V-0
Contact: Phosphor Bronze or Brass
PRODUCT FEATURES:
