HD Video Wall Controller
| Item No.: | DVW5-nxm |
Supplier Details
Country: Taiwan
City: New Taipei City 23144
Address: 7F-7, No.94, Baozhong Road, Xindian District
TEL: +886-2-29160823
Fax: +886-2-29160841
Online Showroom:
63 Products

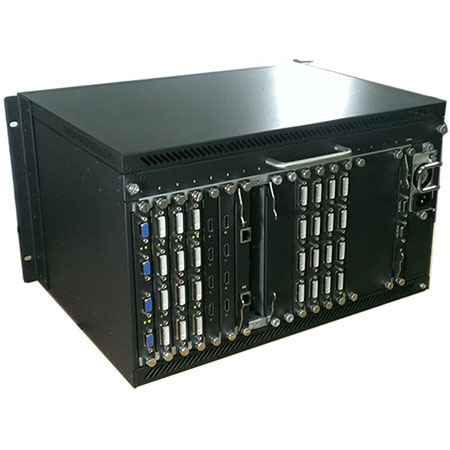

Hybrid Video Wall Box
- Main hardware is well designed with field proven firmware，allows power on/off directly within just few seconds，no virus attack issue, no driver compatibility issue.
- Input card, output card and also power card are all modular design and support hot-plug and hot-swap feature.
- Support various input format including HD-BaseT, VGA, DVI, DualLink DVI, HDMI, SDI/HD-SDI, CVBS, YPbPr/YCbCr, SD Card, Twist-Pair, Fiber-optic etc
- Support DVI-I and HD-BaseT output.
- System max. capacity supports up to 152 inputs and 144 outputs.
- Input video can be displayed on one or multiple windows at any position, or overlap(PiP), shrink and stretch up, across monitor, and roaming anywhere on the video wall.
- Both scenario and template can be preset and pre-stored, then remote controlled via WiFi on either pad or mobile phone.
- Support TCP/IP (LAN/RJ45) and RS-232 protocol.
- Users will be assigned different privilege based on their authority.
- Commonly use’s scenario and template can be pre-stored inside the system, then setup some software HOT-KEYs on the panel of control software to map each scenario and template for easy operation. Total number of scenario and template is limited by hard drive space only.
- Each input generates different video window, and any window can be dragged and dropped , resized, overlay(PiP), shrink and stretch, across monitor, and also roaming.
- Provide SDK for user development, and technical support options.
- The dimension is varied by total number of input cards and output cards. There are some options such as 3U(6i2o) /6U(8i4o) /8U(10i9o) /12U(21i18o) /24U(38i36o).
