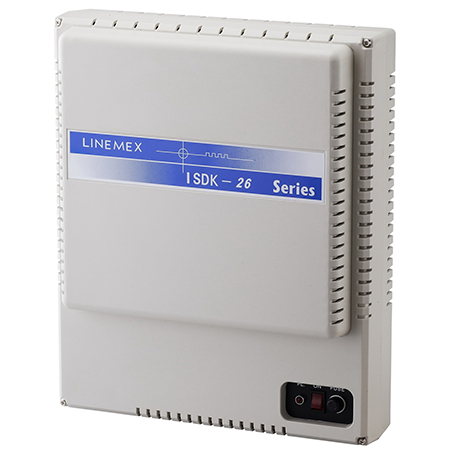

Hybrid IPPBX
| Item No.: | ISDK-26 IPS |
A.System Capacity
|
CO Line |
2 |
4 |
6 |
10* |
|
IP S/T |
4 |
4 |
4 |
4 |
|
Key Telephone |
16 |
16 |
16 |
16 |
|
SLT |
16 |
8 |
8 |
0 |
B.Specification
■ IP Trunk/Station Spec.
|
Protocol |
SIP 2.0 (RFC3261) IP/TCP/UDP/RTP/RTCP IP/ICMP/ARP/RARP Fixed Client/DHCP Client/ PPPoE Client HTTP Server DNS Client NTP Client IP TABLE CTRL |
|
Codec |
G.711 PCM (μ/A-law) at 64 kbps G.726 ADPCM at 16-40 kbps G.729AB CS-ACELP at 8 kbps G.723.1 MP-MLQ at 6.3 kbps G.723.1 ACELP at 5.3 kbps |
|
Voice Quality |
VAD: Voice activity detection CNG: Comfortable noise generator PLC: Packet Loss Concealment G.168-2002 Echo Cancelation Adaptive Jitter Buffer |
|
DTMF Feature |
In-Band DTMF Out-of Band DTMF(RFC2388) SIP Info |
|
SIP Service |
Register four(4) different SIP Servers (4 SIP accounts) |
|
Tone |
Ring Tone Ring Back Tone Dial Tone Busy Tone |
|
Encryption |
HTTP 1.1 basic/digest authentication for Web setup MD5 for SIP authentication (RFC2069/ RFC 2617) |
|
NAT Traversal |
STUN |
|
Management |
Web Browser |
|
Firmware update |
HTTP |
|
DTMF Feature |
In-Band DTMF Out-of Band DTMF(RFC2388) SIP Info |
|
SIP Proxy Server |
Built-in SIP Proxy Server 2 inbound/outbound concurrent calls Provide 20 SIP Phone accounts for the users registration Provide 5 SIP Link accounts Provide 5 SIP Proxy accounts Provide 5 SIP Trunk accounts |
|
IPPBX Feature |
VoIP Gateway Grouping the extention accounts Dialing plan Support several kinds of dual-forking (ring simultaneously / ring by rotation) Display the registeration and communication status Detail dialing log |
■ Built-In VoIP(S/T) Interface with SIP Proxy Server
4 ports for VoIP trunk mode or station mode and SIP proxy server feature included. Providing 25 registered accounts and 4 concurrent communication that enable small enterprises to contact with the sales by their smart phone (by wifi access) but only press the movable extension number.
The VoIP trunk mode allows connecting with VoIP trunk and VoIP station mode enables to integrate with another Uniphone Hybrid IP PBX as an extension PBX.
For multi-site offices or chain stores user, it’s same as communicating with an internal extension - pressing the extension number whatever you want to call/answer another site of extension, moreover, you may even page another site (in different city/country) of extension!
■ IP Dual Forking (Follow Me)
Enable system to distribute the incoming calls equalized to a group of extensions that may share the operator load uniformly. The enterprise may allocate the staff productivity of call-center equalized.
■ PBX Features
Hybrid IPPBX is an PBX advanced system, therefore it provides most of Uniphone PBX feature such as Call transfer, Call forward, Call queuing, Call Barring, LCR...
Application:
■ Small/Medium Enterprises
■ Group Enterprices
■ The enterprise has mobile extension demand
