HPS Piston Seals - HPS

HPS Piston Seals

Item No.: HPS
Supplier Details
NAK Sealing Technologies Corporation
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom: 47 Products
Product Description

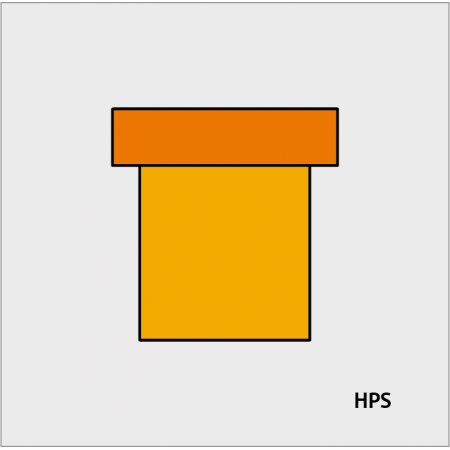

The HPS Piston Seal is a PTFE seal combined with a square seals energizers. The low-friction characteristics of PTFE combined with the performance abilities of the square seals make it able to provide a strong and efficient seal. The square seals design provides a robust sealing as it is less likely to slide or roll in the groove under the high speed and pressure of a double acting cylinder.

Material
Square Ring-NBR
Friction Ring -PTFE

Product Advantages
  • Good media resistance
  • Low frictional resistance
  • Wide operating temperature range depending on the Square Ring material
  • Very good static and dynamic tightness
  • High-speed sliding
  • Fit small grooves heights

Application
Agricultural equipment, injection molding machines, fork-lifts and loading platforms

Operating Conditions
Media Mineral oils
Pressure ≦35 Mpa
Speed ≦1.5 m/s
Temperature Range -40°C , +100°C

Gap Dimension
140 Bar 210 Bar 350 Bar
0.6 mm 0.6 mm 0.23 mm

Surface Roughness
  Sliding Surface Groove Base Groove Flanks
Ra 0.1~0.8 µm ≦1.6 µm ≦3.2 µm
Rz 0.4~3.2 µm ≦6.3 µm ≦12.5 µm
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

HPS Piston Seals

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
