Ultrasonic Homogenizer
| Item No.: | US-50 |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
US series
Application：
- Emulsified and dispersed for ceramics, magnetic powders, pigments, injectable drugs.
-Promote chemical reactions
- Decomposition, extraction: cells, viruses, animal and plant tissue components extracted
Specification:
Power Source：220V /50~60Hz
Output：300W
Frequency：28kHz±1kHz
Amplitude：15~40µm
Dimension：w31 X D20 X H11 mm
Tip：ø5mm
【Brand： Nihonseiki/Japan 】
Application：
- Emulsified and dispersed for ceramics, magnetic powders, pigments, injectable drugs.
-Promote chemical reactions
- Decomposition, extraction: cells, viruses, animal and plant tissue components extracted
Specification:
Power Source：220V /50~60Hz
Output：300W
Frequency：28kHz±1kHz
Amplitude：15~40µm
Dimension：w31 X D20 X H11 mm
Tip：ø5mm
【Brand： Nihonseiki/Japan 】
| Ultrasonic generator | |||||

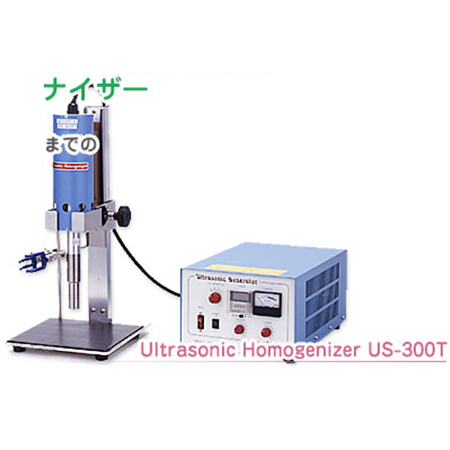

| Model | US-50 | US-150T | US-300T | US-600T | US-1200T |
| | 28kHz±1kHz | 19.5kHz±1kHz | |||
| External Dimension (WxDxH,cm) | 31 x 20 x 11 | 26 x 37 x 19 | 26 x 37 x 19 | 30 x 46x 19 | 40 x 56 x 22 |
| Power | 50W | 150W | 300W | 600W | 1200W |
| Weight | 2.5kg | 8kg | 8kg | 11kg | 38kg |
| Voltage | 110V /1A | 110V/3A | 110V/6A | 110V/10A | 110V/10A |
| Ultrasonic oscillator | |||||
| Oscillator | P.Z.T | ||||
| External Dimension | Φ5 x25 cm | φ9 x25 cm | φ9 x40 cm | ||
| Tripod dimension (WxDxH,cm) | -- | 25 x 26 x 53 | 28 x 28 x 40 | ||
| Workhead | φ5 | φ18 | φ26 | φ36 | φ50 |
| Weight | 1kg | 2kg | 2.5kg | 3.5kg | 6kg |
