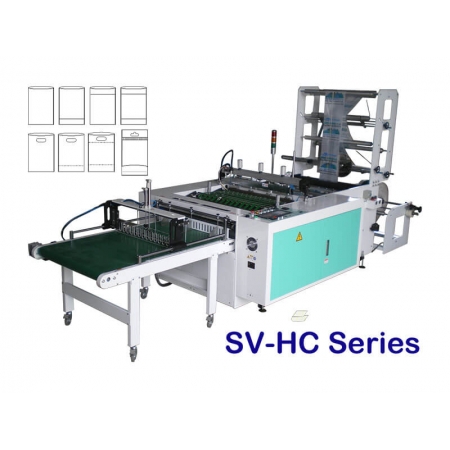

High Speed Universal Side Sealing Bag Machine - SV-HC Series

High Speed Universal Side Sealing Bag Machine

Item No.: SV-HC Series
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Bag Making Machine with Slit-Seal

MACHINE FEATURE:
  • The E.P.C. device combined with the unwinder, its function is sensitive and stable, easy operation.
  • Fully automatic unwinder , unwinding speed auto adjust, no speed adjustment necssary.(Optional)
  • Triangle folding device, easily and smoothly fold the single layer film to double.(Optional)
  • Choice of overlapping EPC and triangle folding device, to safe installation space occupied.
  • Mixed use of multi functions, can produce many different styled bag.
  • Standard equitments are: double lip folding device, bottom gusset device, side opening device.(Trimming or side opening)
  • Special rotary sealing knife design, make the cleaning of sealing knife safe, convenience, quick and easy.
  • No worry about blocked finished products due to the application of special pneumatic gate and pressing roller device cooperated with the main machine.
  • With robust and light structure and the rolling wheel with brake can make change of the place easily.
  • Optional equipments are: self-adhesive device, punching unit, double sealing device, block out-feed device.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size(mm) Production Sped
(bags/min.)
Thickness of
Film (mm)
Servo motor Power Required Machine Size
xWxH(M)
Length Width Top Folding Bottom
Guessting
SV-800HC 65~760 76~770 Up to 75mm Up to 65mm 30~250 0.01~0.2 2.9kw 7.5KW 4.6x1.55x2.0
SV-1000HC 85~960 4.4kw 9.0KW 4.6x1.75x2.0
SV-1200HC 100~1150 4.4kw 9.7KW 4.6x1.95x2.1

Option equipment :
  1. Air Compressor:3HP
  2. Double Sealing device.
  3. Punching device
  4. Top-fold sealing device
  5. Self-adhensive Tape Feeding
  6. Perforating device
  7. Air shaft
  8. EPC with Auto unwinder
  9. Folder
※Specifications are subject to change without notice.
