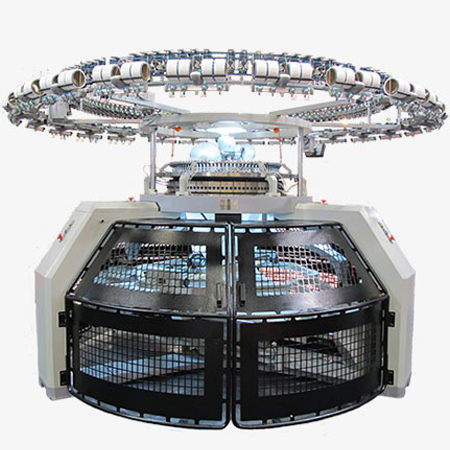

High Speed Single Jersey Open Width Knitting Machine
| Item No.: | SD-3FS |
Supplier Details
Country: Taiwan
City: Taipei city 328
Address: NO.132 Wu Kang Rd., wuku Hsiang,
TEL: +886-2-22997117
Fax: +--
Online Showroom:
22 Products
SD-3FS Single jersey open width knitting machine is Sunda most popular model.
It successfully eliminates the center line, and thus garment maker can fully utilize the fabrics without cutting waste.
SD-3FS advanced open width take down system facilitates fabrics spreading in equal GSM from center to both side edge per roll.
Even though the finest synthetic yarn or micro fiber, Sunda open width machine is capable of the sensitive and fine fabrics.
Your best choice of the stable and durable single jersey open width knitting machine- SD-3FS
Features:
Sunda open width machine has its exceptional design that differentiate from other manufacturers.
■ ONE-WAY BEARING:
It protects the machine from bouncing back whenever it stops, and further extends the life time of the main transmission gear, needles, sinkers, cylinder, and etc.
■ CUSHION DEVICE:
This device install on the take down driving bar and can efficiently absorb the stop shock to the least extent.
*** One-Way Bearing and Cushion Device play an important role to protect the machine from bouncing backward whenever it stops or jogs. Moreover, it helps reduce stop line and further make better fabrics quality.
■ FABRICS SAFETY PROTECTION:
When the fabrics is cutting improperly, this safety device will stop the machine automatically and protect the machine.
■ STEADY FRAME:
SD-3FS design in extra large base and machine frame allows the machine runs in the least frictions and thus extend the machine life time.
Options:
■ MESH CAM: A combination of two feeder per unit mesh cam is available for mesh fabrics.
■TWO TRACK SINKER GUIDANCE: Option for fine gauge or fine fabrics.
Double sinker butt guidance extends the life time of sinker.
It stabilizes the sinker movement, reduces friction between the sinker and the sinker cam, and thereby avoid the defective stripes / oil stripes on the fabrics.
Application:
■ Elastic plating, 2 yarn/3 yarn plating, Plain single jersey, Single pique, Double pique, Twill, Mesh, 2 yarn fleece, knit denim, Crepe, and etc.
■ Underwear, Sports wear, water activity wear, Casual, Industrial Textile, Home Furnishing Textile, Medical Textile.
Specification:
It successfully eliminates the center line, and thus garment maker can fully utilize the fabrics without cutting waste.
SD-3FS advanced open width take down system facilitates fabrics spreading in equal GSM from center to both side edge per roll.
Even though the finest synthetic yarn or micro fiber, Sunda open width machine is capable of the sensitive and fine fabrics.
Your best choice of the stable and durable single jersey open width knitting machine- SD-3FS
Features:
Sunda open width machine has its exceptional design that differentiate from other manufacturers.
■ ONE-WAY BEARING:
It protects the machine from bouncing back whenever it stops, and further extends the life time of the main transmission gear, needles, sinkers, cylinder, and etc.
■ CUSHION DEVICE:
This device install on the take down driving bar and can efficiently absorb the stop shock to the least extent.
*** One-Way Bearing and Cushion Device play an important role to protect the machine from bouncing backward whenever it stops or jogs. Moreover, it helps reduce stop line and further make better fabrics quality.
■ FABRICS SAFETY PROTECTION:
When the fabrics is cutting improperly, this safety device will stop the machine automatically and protect the machine.
■ STEADY FRAME:
SD-3FS design in extra large base and machine frame allows the machine runs in the least frictions and thus extend the machine life time.
Options:
■ MESH CAM: A combination of two feeder per unit mesh cam is available for mesh fabrics.
■TWO TRACK SINKER GUIDANCE: Option for fine gauge or fine fabrics.
Double sinker butt guidance extends the life time of sinker.
It stabilizes the sinker movement, reduces friction between the sinker and the sinker cam, and thereby avoid the defective stripes / oil stripes on the fabrics.
Application:
■ Elastic plating, 2 yarn/3 yarn plating, Plain single jersey, Single pique, Double pique, Twill, Mesh, 2 yarn fleece, knit denim, Crepe, and etc.
■ Underwear, Sports wear, water activity wear, Casual, Industrial Textile, Home Furnishing Textile, Medical Textile.
Specification:
|
Model |
Cylinder Dia. |
Gauge/ inch |
Feeder/ inch |
|
SD-3FS |
28" ~38" |
24G~48G |
3/3.2/4F |
