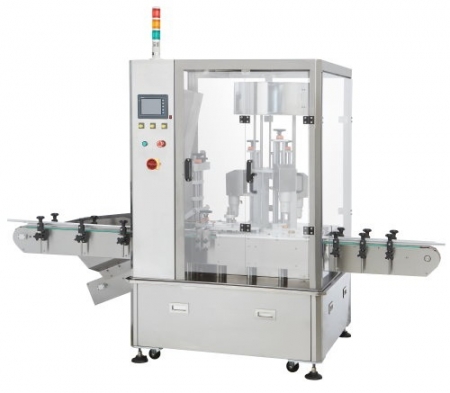

High Speed Rotary Capping Machine CR-635S is high speed rotary capping system easy to get 80 BPM capacity.


FEATURES:
·         Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
·         Heavy-duty conveyor by MCC slat top-chain
·         Continuous capping 「No Bottle,No Cap」Design
·         3 servo motor torque capping heads control torque digitally
·         PLC Control system combined with HMI(touch screen)
·         Automatic Cap elevator, feed and place cap at once
·         Digital output torque adjustment
·         Emergency stop and Three -color indicate light
·         Linear Cutting capping head to ensure
·         Quick swap change parts
·         20 slots memory recall
·         Water-proof with IP54 grade
·         Safety interlocks with clear acrylic guard, auto-stop when door is open

SPECIFICATIONS:
·         Cap type：Screw and press cap (Customized cutting)
·         Standard Cap Size：25mm – 60mm O.D
·         Capping Speed：60~80 Bottles/min
·         Air Requirements：90 PSI @ 3 CFM6Kg
·         Power：single phase 110/220VAC, 50/60Hz
·         Machine Dimensions：(L)2684mm (W)1191mm (H)2114mm
