high frequency pvc welding machine
| Item No.: | JGP-5Z/SK 6Z/SK 8Z/SK |
Supplier Details
Country: China
City: Xiamen
Address: No. 3 Plant, No. 39 Xiayang Road, Xinyang Industrial Zone, Haicang District
TEL: +86-592-5581299
Fax: +--
Online Showroom:
30 Products

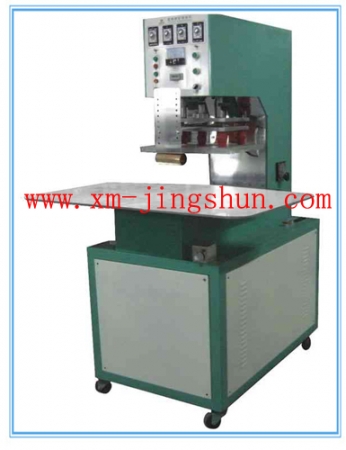

Manual Turnplate Welding Machine
1. Simple manual turnplate operation
2. Very clean with air-operatiion
3. Big working stroke for blister packing etc.... 4. ISO9001 & 20 years experiences accumulation 5. Can process blister packing, raincoat, garment, shoes etc. many products with big working stroke Description: 1. Steady frequency: This machine strictly adopts industrial wave band according to the provision of nations “radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment. 2. Security protection: This machine has spark protection system of exceeded voltage and electric current. Specification: Product Name Manual Turnplate Air-operated H.F.Welding Machine Model JGP-5Z/SK JGP-6Z/SK JGP-8Z/SK H.F. Output Power 5KW 6KW 8KW Voltage 1ΦAC220V or 3ΦAC380V 3ΦAC380V or 3ΦAC220V Power Input 8KVA 10KVA 15KVA Oscillation Frequency 40.68MHZ 27.12MHZ Oscillation Tube 7T85RB 7T69RB/E3069 7T69RB/E3069 Upper Electrode Size(mm) 350×500 350×500 350×500 Bottom Electrode Size(mm) 500×650 500×650 500×650 Working Stroke(mm) 150~200 Profile Size(mm) 1200×800×1850 1200×800×1850 1200×800×1850 Net Weight 350kg 350kg 400kg NOTE: We will improve design continuously, so no prior notice for any design changement.
