high frequency pvc welding machine
| Item No.: | JGP-5H 6H 8H 12H 15H/SK |
Supplier Details
Country: China
City: Xiamen
Address: No. 3 Plant, No. 39 Xiayang Road, Xinyang Industrial Zone, Haicang District
TEL: +86-592-5581299
Fax: +--
Online Showroom:
30 Products

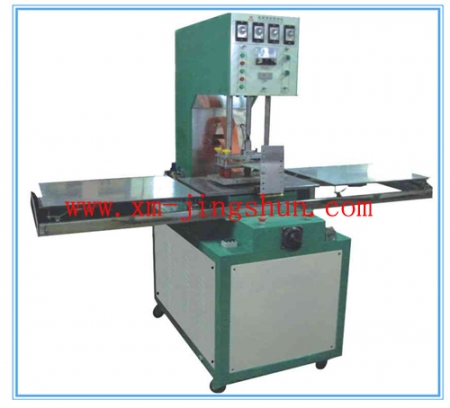

Manual Slide Plate Welding Machine
1. With air-operated device
2. Slide plate manual operation
3. ISO9001 & 20 years experiences accumulation 4. Can process blister packing, raincoat, garment, shoes etc. many products with big working stroke Description: 1. Steady frequency: This machine strictly adopts industrial wave band according to the provision of nations “radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment. 2. Security protection: This machine has spark protection system of exceeded voltage and electric current. Specification: Product Name Manual Slide Plate Air-operated H.F.Welding Machine Model JGP-5H/SK JGP-6H/SK JGP-8H/SK JGP-12H/SK JGP-15H/SK H.F. Output Power 5KW 6KW 8KW 12KW 15KW Voltage 1ΦAC220V or 3ΦAC380V 3ΦAC380V or 3ΦAC220V Power Input 8KVA 10KVA 15KVA 20KVA 25KVA Oscillation Frequency 40.68MHZ 27.12MHZ 20~27.12MHZ Oscillation Tube 7T85RB 7T69RB/E3069 7T69RB/E3069 8T85RB 8T85RB Upper Electrode Size(mm) 200×350 200×350 400×600 400×600 400×600 Bottom Electrode Size(mm) 400×600 400×600 600×800 600×800 600×800 Working Stroke(mm) 150~200 Profile Size(mm) 2010×1000×1800 2010×1000×1800 2700×1000×1900 2700×1000×1900 2700×1000×1900 Net Weight 300kg 350kg 400kg 450kg 500kg NOTE: We will improve design continuously, so no prior notice for any design changement.
2. Slide plate manual operation
3. ISO9001 & 20 years experiences accumulation 4. Can process blister packing, raincoat, garment, shoes etc. many products with big working stroke Description: 1. Steady frequency: This machine strictly adopts industrial wave band according to the provision of nations “radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment. 2. Security protection: This machine has spark protection system of exceeded voltage and electric current. Specification: Product Name Manual Slide Plate Air-operated H.F.Welding Machine Model JGP-5H/SK JGP-6H/SK JGP-8H/SK JGP-12H/SK JGP-15H/SK H.F. Output Power 5KW 6KW 8KW 12KW 15KW Voltage 1ΦAC220V or 3ΦAC380V 3ΦAC380V or 3ΦAC220V Power Input 8KVA 10KVA 15KVA 20KVA 25KVA Oscillation Frequency 40.68MHZ 27.12MHZ 20~27.12MHZ Oscillation Tube 7T85RB 7T69RB/E3069 7T69RB/E3069 8T85RB 8T85RB Upper Electrode Size(mm) 200×350 200×350 400×600 400×600 400×600 Bottom Electrode Size(mm) 400×600 400×600 600×800 600×800 600×800 Working Stroke(mm) 150~200 Profile Size(mm) 2010×1000×1800 2010×1000×1800 2700×1000×1900 2700×1000×1900 2700×1000×1900 Net Weight 300kg 350kg 400kg 450kg 500kg NOTE: We will improve design continuously, so no prior notice for any design changement.
