high frequency pvc welding machine
| Item No.: | JGP-5T, 6T, 8T, 12T, 15T/YRG |
Supplier Details
Country: China
City: Xiamen
Address: No. 3 Plant, No. 39 Xiayang Road, Xinyang Industrial Zone, Haicang District
TEL: +86-592-5581299
Fax: +--
Online Showroom:
30 Products

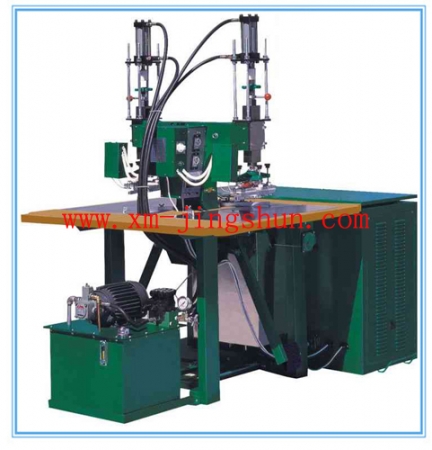

T head H. F. welding machine with hydraulic & electric heating & high sensitivity spark protection
1.Hydraulic makes powerful pressure.
2. Electric heating improve
production efficiency.
3. Spark protection can protect product & mould safe. 4. High cost-performance & small volume Description: 1. This product is very suitable for raincoat, leather embossing, PVC bag etc. 2. Hydraulic-operated & electric heating & high sensitivity spark protection, so it is very safe & high efficiency Specification: Product Name H.F.PLastic Welding Machine with hydraulic & electric heating & high sensitivity spark Model JGP-5T/YRG JGP-6T/YRG JGP-8T/YRG JGP-12T/YRG JGP-15T/YRG H.F. Output Power 5KW 6KW 8KW 12KW 15KW Voltage 1ΦAC220V or 3ΦAC380V 3ΦAC380V or 3ΦAC220V Power Input 8KVA 10KVA 15KVA 20KVA 25KVA Oscillation Frequency 40.68MHZ 27.12MHZ 20~27.12MHZ Oscillation Tube 7T85RB 7T69RB/E3069 7T69RB/E3069 8T85RB 8T85RB Electrode Size(mm) 300×650 300×650 350×700 350×700 350×700 Working Stroke(mm) 60 Profile Size(mm) 1550×1140×1880 1550×1140×1880 1740×1190×1910 1740×1190×1910 1740×1190×1910 Net Weight 335kg 370kg 480kg 500kg 530kg NOTE: We will improve design continuously, so no prior notice for any design changement.
