high frequency pvc welding equipment
| Item No.: | JGP-2.8T 4T 5T 6T/KR |
Supplier Details
Country: China
City: Xiamen
Address: No. 3 Plant, No. 39 Xiayang Road, Xinyang Industrial Zone, Haicang District
TEL: +86-592-5581299
Fax: +--
Online Showroom:
30 Products

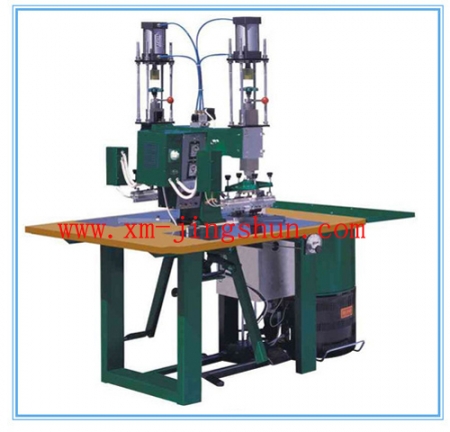

H. F. plastic welding machine with air-operation & electric heating
1. Air-operated & electric heating are very
clean
2. Low cost & high efficiency
3. Small volume to save space 4. Can be used in shoes & raincoat & garment etc. factories. Description: This type machine is very popular in many shoes & garment etc. factories. Specification: Product Name H.F.PLastic Welding Machine with Pneumatic & electric heating Model JGP-2.8T/KR JGP-4T/KR JGP-5T/KR JGP-6T/KR H.F. Output Power 2.8KW 4KW 5KW 6KW Voltage 1ΦAC220V or 3ΦAC380V 3ΦAC380V or 3ΦAC220V Power Input 4.5KVA 6.5KVA 8KVA 10KVA Oscillation Frequency 40.68MHZ Oscillation Tube E3062 E3062 7T85RB 7T69RB/E3069 Electrode Size(mm) 300×650 300×650 300×650 300×650 Working Stroke(mm) 60 Profile Size(mm) 1550×1140×1850 1550×1140×1850 1550×1140×1850 1550×1140×1850 Net Weight 245kg 270kg 285kg 320kg NOTE: We will improve design continuously, so no prior notice for any design changement.
2. Low cost & high efficiency
3. Small volume to save space 4. Can be used in shoes & raincoat & garment etc. factories. Description: This type machine is very popular in many shoes & garment etc. factories. Specification: Product Name H.F.PLastic Welding Machine with Pneumatic & electric heating Model JGP-2.8T/KR JGP-4T/KR JGP-5T/KR JGP-6T/KR H.F. Output Power 2.8KW 4KW 5KW 6KW Voltage 1ΦAC220V or 3ΦAC380V 3ΦAC380V or 3ΦAC220V Power Input 4.5KVA 6.5KVA 8KVA 10KVA Oscillation Frequency 40.68MHZ Oscillation Tube E3062 E3062 7T85RB 7T69RB/E3069 Electrode Size(mm) 300×650 300×650 300×650 300×650 Working Stroke(mm) 60 Profile Size(mm) 1550×1140×1850 1550×1140×1850 1550×1140×1850 1550×1140×1850 Net Weight 245kg 270kg 285kg 320kg NOTE: We will improve design continuously, so no prior notice for any design changement.
