Horizontal Slitting Machine

Item No.:

SA-2AHP

Supplier Details

Sunkist Chemical Machinery Ltd.

Country: Taiwan

City: Taipei City

Address: 10F., No.200, Sec. 2, Jinshan S. Rd., Da’an Dist.

TEL: +886-2-23956686

Fax: +886-2-23217266

Online Showroom: 48 Products

Product Details Supplier Profile

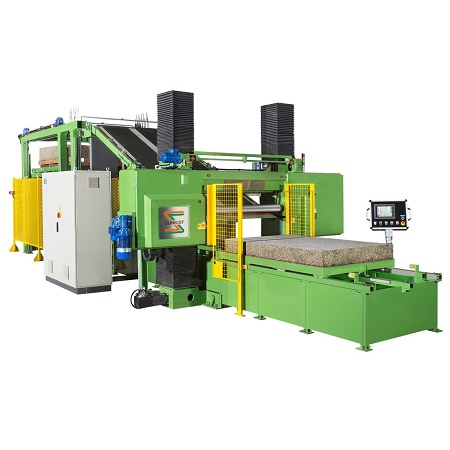

Heavy duty horizontal splitting machine

The machine is designed to cut tough material into thin sheets.
Suitable for cutting Natural & Synthetic Rubber Foam, Neoprene, E.V.A. Foam, LDPE Foam, PVC Foam, cork or rebonded Rubber.
The foam is placed on the specially made table with suction unit, preset the cutting thickness from the monitor and after split off, sheets are taken away by hand.
The machine consists of solid and strong construction of cast steel fitted with two knife wheels to achieve constant optimum cutting quality.
Equipped with large diameter knife pulley, and thick & solid precision blade guide.
With two sets of grinding units which grinds the band knife continuously.
Auto band knife is controlled by servo control unit which can keep the position of band knife always at the same distance from the blade guide.
The grinding unit includes an auto system that protects the blade by withdrawing the grinding stones when the blade stops, preventing wearing down of the blade.
The cutting angle of blade guide can be changed in order to meet every variation of materials and different cutting thickness.
Equipped with vacuum table to stabilize the foam while cutting.
Option of increasing cutting table length and width.
The stacking device allows the automatic removal of the sheets which is free of manual labor. The sheets are transferred to the platform to be stacked on the pallet. The finished stack can be easily transported by forklift.

Sunkist Chemical Machinery Ltd. was established in 1979. Our company has a great reputation for producing the machinery required for flexible & rigid polyurethane foam producing Plant. We have developed markets in 129 countries in the past 36 years. Our short term goal is to reach 135 countries in 2015. Sunkist has grown alongside with many successful foam making companies we came to know today. Our task is to provide reliable, highly efficient, and durable machinery for our customers. Our company goal is to continuously improve the quality of the product to be the best in the world and always satisfy the needs of our customers. To us, the quality of the product is the life of our company. We have put in relentless effort in research and development, as well as gathering the most advance technology from senior engineers all over the world to improve the quality of our product. Our aim is that our customers, as well as the consumers, can all reap the benefits of the hard work we have put in. Our foaming machine can produce very high/low density of foam block with very little cost. And our cutting machines have extremely high precision cutting unit for Hi-tech industry. All the machines we produce are environmental friendly. Our company is a professional manufacturer excelling at making foam cutting machine, re-bonding machine, foam sponge rubber, bedding machine, knife cutter, foam cutter, quilting machine, laminating machine, plastic recycling machine, mattress machine, foaming machine, and more. Our product range includes all foaming equipment, flexible & rigid slabstock flat top high/low pressure foaming machine with vacuum or carbon dioxide process, single block dispensers, foam machinery, foam cutting machine, foam sponge rubber, bedding machine, knife cutter, foam cutter, quilting machine, plastic recycling machine, mattress machine, smart mould. All types of cutting machines such as auto horizontal cutter, auto circular horizontal cutter with vacuum table, vertical, angle cutters, CNC contour cutters, long splitter looper, three or four zone in one convolutor, auto re-bonding machine for rectangular or round blocks, laminating machines, peeling machines, Chipping Machines, Milling, Sealing Machines, and machines for bedding industry, e.g. Spring Machines, Tape-Edge, Quilting Machines and many more. Until today we have received over 48 patent rights both internationally and in our own country and symbol of "IT'S VERY WELL MADE IN TAIWAN" for our product with excellent after sale service. We love our work passionately and will continue to strive for the best.
