Horizontal Splitting Machine - SA-2AHP

Horizontal Splitting Machine

Item No.: SA-2AHP
Supplier Details
Country: Taiwan
City: Taipei City
Address: 10F., No.200, Sec. 2, Jinshan S. Rd., Da’an Dist.
TEL: +886-2-23956686
Fax: +886-2-23217266
Online Showroom: 48 Products

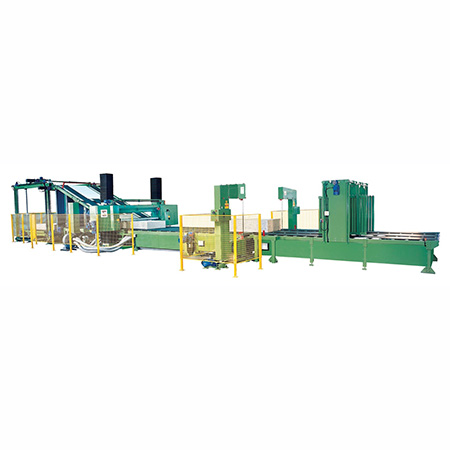

Heavy duty Horizontal Splitting Machine with Quad side trimming and auto stackinh device(Conveyor type)
  1. The machine is designed to cut tough material into thin sheets.The machine is designed to cut tough material into thin sheets.
  2. Suitable for cutting Natural & Synthetic Rubber Foam, Neoprene, E.V.A. Foam, LDPE Foam, PVC Foam, cork or Rebond Rubber.
  3. The foam is placed on the specially made table with suction unit, preset the cutting thickness from the monitor and after split off, sheets are taken away by hand.
  4. The machine consists of solid and strong construction of cast steel fitted with two knife wheels to achieve constant optimum cutting quality.
  5. Equipped with large diameter knife pulley, and thick & solid precision blade guide.
  6. With two sets of grinding units which grinds the bandknife continuously.
  7. Auto bandknife is controlled by servo control unit which can keep the position of bandknife always at the same distance from the blade guide.
  8. The grinding unit includes an auto system that protects the blade by withdrawing the grinding stones when the blade stops, preventing wearing down of the blade.
  9. The angle of the blade guide can be adjusted to different cutting thickneses for various materials.
  10. Equipped with vacuum table to stabilize the foam while cutting.
  11. Option of increasing cutting table length and width.
