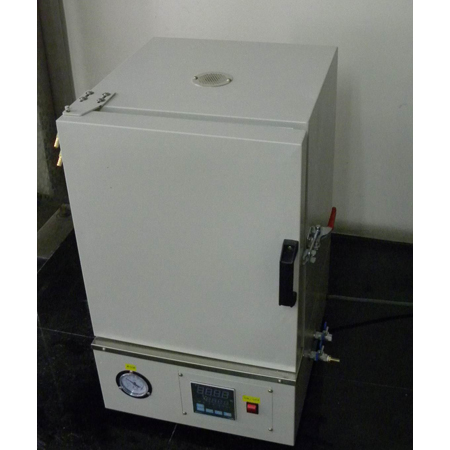

Heat Treatment Furnace
| Item No.: | TEN-VO-1200-27 |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
Application:
-Melting
-Thermal shock testing
Specifications:
1. Maximum temperature: 1200 ℃
2. Internal Dimensions: W30 cm x D30 cm x H30 cm
3. External Dimensions: W70 cm x D80 cm x H90 cm
4. Capacity: 27L
5. Internal Material: SUS304 # stainless steel plate
6. Use embedded heating wire for insulation materials
7. External material: galvanized steel + paint
8. Standard accessories: circuit breaker x 1, puller handle x 1
9. Safety devices: self-diagnostic function, abnormal temperature, thermal shutdown and buzzer (AL thermometer built-do over-temperature shutdown) and power protection switch.
10. Bellow pipe fittings, three-way valve, 4000psi high pressure
11. Digital display, PID control program, the program can remember 4 groups, each program has 10 segments temperature setting
12. Vacuum:1-760mmHg (Pointer vacuum gauge)
13. Average temperate heating
14. The backup pump power control switch x1
15. Power: 220V / 1N
16. Good service
17. Customized available
18. Please mail us for more details
[Brand: TENDER / Taiwan]
-Melting
-Thermal shock testing
Specifications:
1. Maximum temperature: 1200 ℃
2. Internal Dimensions: W30 cm x D30 cm x H30 cm
3. External Dimensions: W70 cm x D80 cm x H90 cm
4. Capacity: 27L
5. Internal Material: SUS304 # stainless steel plate
6. Use embedded heating wire for insulation materials
7. External material: galvanized steel + paint
8. Standard accessories: circuit breaker x 1, puller handle x 1
9. Safety devices: self-diagnostic function, abnormal temperature, thermal shutdown and buzzer (AL thermometer built-do over-temperature shutdown) and power protection switch.
10. Bellow pipe fittings, three-way valve, 4000psi high pressure
11. Digital display, PID control program, the program can remember 4 groups, each program has 10 segments temperature setting
12. Vacuum:1-760mmHg (Pointer vacuum gauge)
13. Average temperate heating
14. The backup pump power control switch x1
15. Power: 220V / 1N
16. Good service
17. Customized available
18. Please mail us for more details
[Brand: TENDER / Taiwan]
| Model | Temperature | Internal Dimension(cm) | Capacity(L) |
| TEN-VO-1200-8 | 1200℃ | 20x20x20m | 8L |
| TEN-VO-1200-27 | 1200℃ | 30x30x30cm | 27L |
| TEN-VO-1200-64 | 1200℃ | 40x40x40cm | 64L |
| TEN-VO-1200-125 | 1200℃ | 50x50x50cm | 125L |
