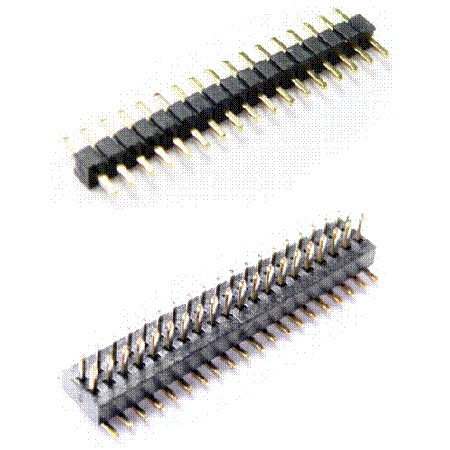

Header Pin Connectors - PH2

Header Pin Connectors

Item No.: PH2
Supplier Details
Country: Taiwan
City: Xinbei
Address: San Chung District
TEL: +886-02-12332233
Fax: +886-02-12332233
Online Showroom: 86 Products
Specifications:

2.54mm pin header

Dielectric withstanding voltage: AC 500V/1 minute

Insulation resistance: 1,000mΩ

Current rating: 3A

Contact resistance: 30mΩ  max.(initial)

Dual housing straight

Pin: 2*40p

Temperature range: -20~+80°C

Materials:

1. Contact plated: gold flash

2. Contact: Copper Alloy

3. Insulator: thermoplastic(UL94V-O)
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Header Pin Connectors

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
