HD SDI Coax
Item No.: | SDIVPX |
Supplier Details
Country: Taiwan
City: New Taipei City 23144
Address: 7F-7, No.94, Baozhong Road, Xindian District
TEL: +886-2-29160823
Fax: +886-2-29160841

Online Showroom:
63 Products

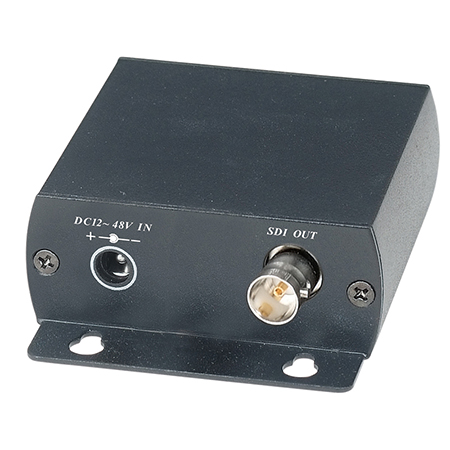

HD-SDI Video & Power over one Coax
- To send HD-SDI video and camera power over one coaxial cable.
- Allow to use existing RG59 coax cable to upgrade the HD-SDI camera from analog camera.
- Transmission distance up to 300 meters over RG6U cable.
- SDIVPRX receiver power input support: DC12V to DC58V
- SDIVPTX transmitter and camera power from receiver unit.
- SDIVPTX support camera power up to DC12V/1Amp.
- POC built in two class surge protection: class I 2KA (8/20uS), class II 2A (8/20uS)
- SDI output/input built in 2A 2KA (8/20uS) surge protection
- Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M).
- Support video signal 720p, 1080i, 1080p.
