Handheld Reader
Item No.: | SLR200 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213

Online Showroom:
84 Products

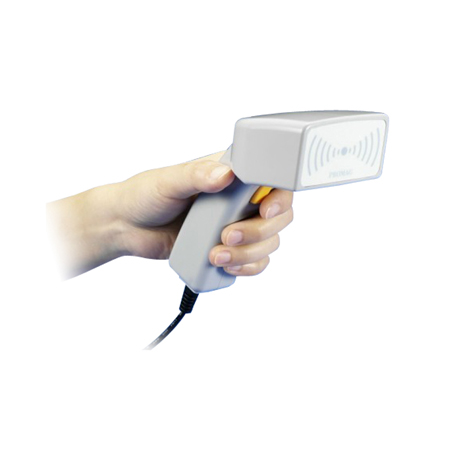

Handheld Smart Label Reader
Introduction:
The SLR200 is a handheld and compact RFID reader able to read ISO15693 compliant smart labels. Able to configure the user-defined block data, and output the user-defined format. Supporting two USB serial emulation and USB keyboard emulation interfaces which are easy to integrate the running devices upgrading.
Features:
☆Supports UBS RS232 emulation.
☆Supports USB keyboard emulation
☆Works as a configurable block reader
·ISO/IEC 15693 compatible
·Reads ISO15693 smart labels
Applications:
·Logistic control system
·Library management
·Smart label printer and encoder
·Ticketing system
Specifications:
※ Specification is subject to change without notice.

Introduction:
The SLR200 is a handheld and compact RFID reader able to read ISO15693 compliant smart labels. Able to configure the user-defined block data, and output the user-defined format. Supporting two USB serial emulation and USB keyboard emulation interfaces which are easy to integrate the running devices upgrading.
Features:
☆Supports UBS RS232 emulation.
☆Supports USB keyboard emulation
☆Works as a configurable block reader
·ISO/IEC 15693 compatible
·Reads ISO15693 smart labels
Applications:
·Logistic control system
·Library management
·Smart label printer and encoder
·Ticketing system
Specifications:
Power Requirements | 5 Volts regulated DC at 150mA . Typical with a 9V supply ※ A linear regulator is recommended |
Interface | USB serial emulation USB keyboard emulation |
Smart Labels | Tag-It HF-I, I-CODE SL2 based on ISO15693 compliant |
Maximum reading distance | Up to 50 mm at 12 V with ISO15693 standard smart label s in ideal conditions |
Frequency | 13.56 MHz standard |
Supply voltage | 5VDC |
Supply current | Standby:70mA, Trigger:180mA |
Dimensions | (L) x (W) x (D) mm |
Operating temperature | 0°C ~ + 60 °C |
Housing material | ABS |
※ Specification is subject to change without notice.
