GSM Door Intercom
| Item No.: | SS1204-M |
Supplier Details
Country: Taiwan
City: Tainan
Address: 10F-4,NO.12,Chung Hua Road,Yung Kang District,Taiwan
TEL: +886-6-3127675
Fax: +886-6-3137670
Online Showroom:
31 Products
Introduction

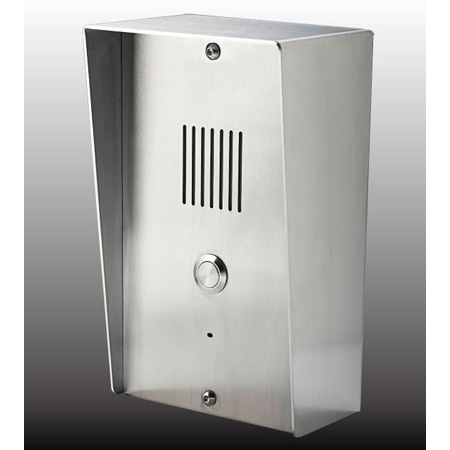

The product is a GSM/3G enabled door intercom and the panel is made of stainless steel to monitor and manage your house/facility/warehouse entry points through your mobile device. It uses a high-quality and durable LED light button and water resistant speaker and microphone.
Features
Model
SS1204AV-M: Dual band 3G 850/1900MHz
SS1204EV-M: Dual band 3G 900/2100MHz
Specification
The product is a GSM/3G enabled door intercom and the panel is made of stainless steel to monitor and manage your house/facility/warehouse entry points through your mobile device. It uses a high-quality and durable LED light button and water resistant speaker and microphone.
Features
- Stainless-Steel 304 housing, Weatherproof
- Vandal resistant design
- Call / SMS / APP programming
- Remote unlock during the call
- Ring time/ call time/ relay time is changeable
- Silent monitoring
- 1152 user caller ID access control by free call
- Check stored numbers via text message
- Relay can be control to hold or release the gate
Model
SS1204AV-M: Dual band 3G 850/1900MHz
SS1204EV-M: Dual band 3G 900/2100MHz
Specification
|
Operating Voltage |
12 to 24 Volt AC/DC |
|
Operating Current |
Maximum 250 mA, Typically 55mA |
|
GSM / 3G Module |
Cinterion / Simcom |
|
GSM / 3G Frequency |
SS1204A-M for 850MHz/1900 MHzSS1204E-M for 900MHz/2100 MHz |
|
Physical size |
Face plate: 170 x 100 mm, Stainless cabinet: 174 x 113 x 65 mm |
|
Length of antenna |
3 meters cable |
|
Humidity |
Less than 80% RH |
|
Operating Temperature |
-20℃ to 50℃ |
