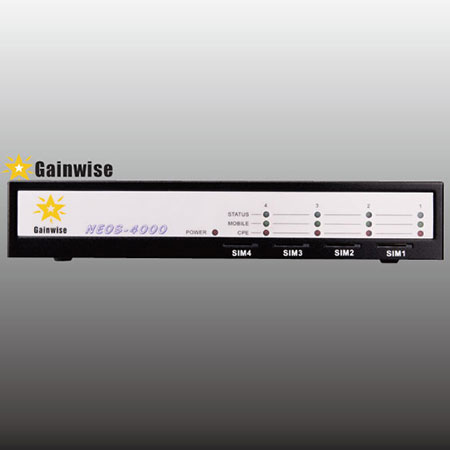

Fixed Cellular Terminal GSM Gateway

Item No.:

NEOS4000-3G06A

Supplier Details

Gainwise Technology Co.,Ltd

Country: Taiwan

City: Tainan

Address: 10F-4,NO.12,Chung Hua Road,Yung Kang District,Taiwan

TEL: +886-6-3127675

Fax: +886-6-3137670

Online Showroom: 31 Products

Product Details Supplier Profile

Introduction
3G NEOS4000 calls either as mobile via a 3G sim card(Quantity 4), whichever is the cheapest option. Enjoy free calls to mobiles from a landline or discount long distance calls, depending on service provider selected.

Features

Provision for up to four SIM cars
Up to 50 in-build LCR codes
Customized Line Impedance
Customized dial tone,busy tone,ring for frequency and cadence
Connect to PABX analog trunk ports or VoIP FXO ports
Mobile Trunk and Back-up telephone line
Wall or Rack mountable
Time controller : control the of outgoing call
Remote programming : DTMF tones of phone during the call
Pseudo ring back tone : simulation of ring back tone after dial out
Reversal polarity for incoming and outgoing
Caller ID (DTMF , V.23 FSK , BELL 202 )

Applications

Specification

Air interface	UMTS(WCDMA/FDD) Bands : 800 / 850 / 900 / 1900 / 2100 GSM Bands : 850 / 900 / 1800 / 1900
Phone interfaces	Impedance:600Ω or AU 220Ω+820Ω//120nF or others Line current:24mA
Dimensions and Weight	24016443mm 966g
Connectors	PHONE PORT:P1,P2,P3,P4 RJ11 interface for POTS interface DC12V:12VDC power jack ANT1,ANT2,ANT3,ANT4:SMA plug female(50ohm) SIM1,SIM2,SIM3,SIM4:SIM card connector
LED indicators	Power Status Mobile Hook(CPE)
Antenna(included)	SMA magent antenna(3meter)
Environment	Operating:-10℃~50℃ Storage:-40℃~60℃ Humidity:5%~95%
AC to DC swithing power supply(included)	AC input:100~240VAC,50/60Hz DCoutput:DC12V/3A AVAilable plug:US,EU,AU,UK
