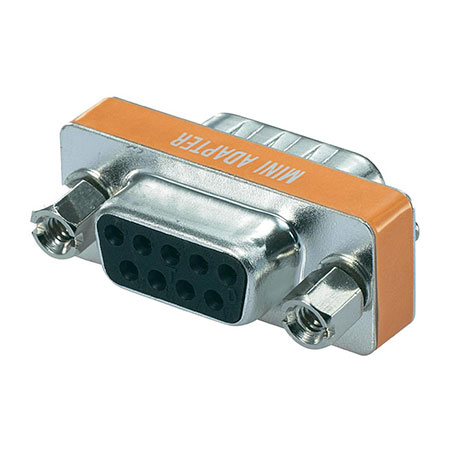

Null Modem Gender Changer
| Item No.: | NG9 |
Supplier Details
Country: Taiwan
State: TAIWAN (R.O.C)
City: New Taipei City 235
Address: 4F., No. 123, Lide St., Zhonghe Dist.
TEL: +886-2-82276428
Fax: +886-2-82276427
Online Showroom:
93 Products
- Application : GENDER CHANGER CONNECTOR
Used to correct the mismatches that result when interconnecting two devices or cables with the same gender of connector. Also used when extending any sort of cable that normally has plugs on both ends (rather than a socket on one and plug on the other), however in this case it is usually called just an "extender", such as with F connectors, BNC connectors, and various RJ connectors used in telephony and computer networking. - Type : Null Changer & Plug&Socket
- Voltage Rating : 300V AG (rms)
- Current Rating : 3AMP continuous
- Dielectric Strength : 1,000V AC
- Contact Resistance : 10MΩ minimum
- Insulation Resistance : 5,000MΩ minimum
- Number of Contact : 09 PIN
- Safety Certification : ISO9001, ISO14000 & Rohs Compliance
- Material : PA6T, PA9T, PBT, PA46, LCP
- Packaging Details : Standard packaging is plastic tray at first then put into carton box, but accept any special requirements.
- Gender changers (=gender-bender) are used in professional audio to adapt XLR connectors, RCA connectors, Speakon connectors and TRS phone connectors.
- A cable adapter that converts a male connector (a connector with one or more pins or plugs) into a female connector (a connector with one or more holes or receptacles) of the same type, or a female connector to a male connector of the same type. A gender changer can be a self-contained, rigid piece of hardware, or it can consist of a short length of cable with male connectors on each end or female connectors on each end.
- For Electronic Products, Industrial Computers, Communication Systems, Computer Networking System, Aftermarket parts etc.
- Quality Assurance :
Sincere State Electronic is a professional international manufacturer with 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with Europe, the United States, Japan, Korea and other international brands connectors.
DOWNLOAD SPECIFICATION
