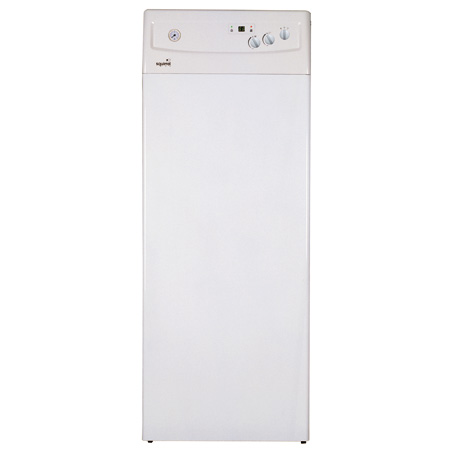

Gas Floor Standing Boiler - ST64-D2

Gas Floor Standing Boiler

Item No.: ST64-D2
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom: 57 Products
Available in 32, 64 KW
Features & Benifits

* Built in 120 storage type heat exchanger ensures hot water supply for CH and DHW simultaneously

* Fast water heat up, up to 120L of water could be heated in 6 mins.

* Stable water temperature

* 2 spare pumps guarantee demand from different floor satisfied

* Especially good for big house and villa

* 18 protective functions ensure maximum reliability

* Floor heating mode with 60℃ temp limit protection

* Energy saving and comfort modes available for different needs.

* Magnetic filtering devices ensure normal operation in bad quality area.



Technical Data

Model ST64-D2Unit
Gas TypeNG, LPG, Town Gas
Dimension(L*H*W)1600 X 725 X 830mm
C.H. System
Nominal heat input70KW
Nominal heat output64KW
Heat Efficiency 91.4%
CH System Working Pressure0.05~0.3Mpa
Max. Heating Temperature 90
Adjustable CH flow Temp.range 40~85(Floor heating 35~60)
Nominal Electric Power290W
Power ~120V/60Hz
Protection ClassIPX4D
Expansion Vessel Volume12L
Expansion Vessel Pre-charge Pressure0.1Mpa
Heating Area(For reference only) 300~600M2
Applicable Water Tap Number2
NWT(boiler only) 180kgs
DHW System
Max. Working Pressure 0.6Mpa
Min. Working Pressure 0.03Mpa
Continuous DHW Production △T=25℃ 36kg/min
Adjustable DHW flow Temp.range  (±3℃) 35~60
Min DHW flow2.5kg/min
DHW limited flow rate20kg/min
DHW storage tank capacity120L
Gas Pressure
Natural Gas 2000Pa
LPG2800Pa
Connection
CH water outlet3/4"
DHW inlet3/4"
DHW outlet1/2"
Cold water inlet1/2"
Gas inlet3/4"
Pump delivery height6m
