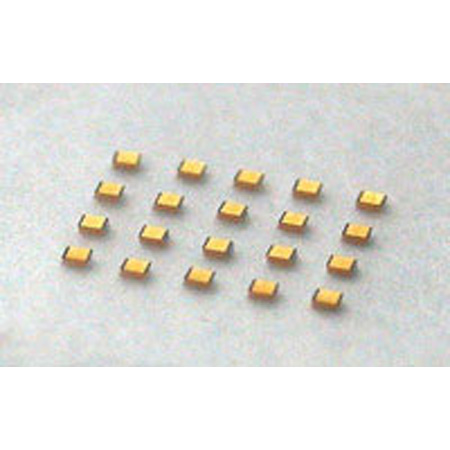

Photodetector Diode Chip
| Item No.: | JL-PM805 |
Supplier Details
Country: Taiwan
State: Taiwan
City: Taichung
Address: 7F-11,No.77,Shin-Jen N.1st Rd.
TEL: +886-04-22585588
Fax: +886-04-22585665
Online Showroom:
81 Products
Structure: GaAs PIN. waveguide 850nm, P-electrode(anode with Gold), N-electrode(cathode with Gold)
Dimension:．L:400±20um．W:250±20um．H:150±20um．Active area:50 um.
Feature: BW 10GHz(min.)/ BV=50V/low capacitance/low dark current/low Vf/high ESD/high responsivity/high reliability/low noise/ With RoHS and Halogen Free compliance.
Basic application: The GaAs PIN photodiode is widely used to the optical communication such as receiver or transceiver compact, with rugged construction, low power consumption, adapt to Transistor Outline Can package，like series of TO-4x, or TO-5x.
Dimension:．L:400±20um．W:250±20um．H:150±20um．Active area:50 um.
Feature: BW 10GHz(min.)/ BV=50V/low capacitance/low dark current/low Vf/high ESD/high responsivity/high reliability/low noise/ With RoHS and Halogen Free compliance.
Basic application: The GaAs PIN photodiode is widely used to the optical communication such as receiver or transceiver compact, with rugged construction, low power consumption, adapt to Transistor Outline Can package，like series of TO-4x, or TO-5x.
