Tissue Paper Manufacturing Machine
| Item No.: | AN-57122 + AN-82600 |
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom:
51 Products

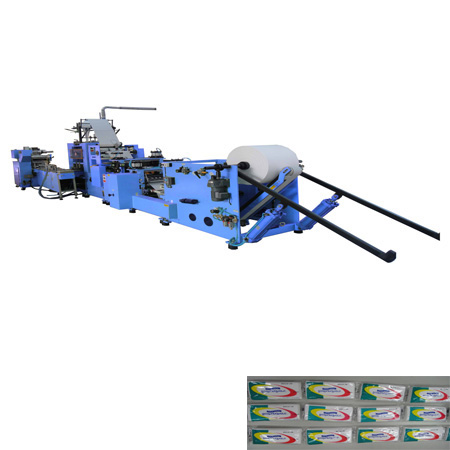

Fully Automatic Line Of Pocket Tissue
Pocket Facial Tissue folding Machine
Auto Pocket Facial Tissue Wrapping Machine
Pocket Facial Tissue folding Machine
| Sheet size | 210(L) x 210(W)/mm |
| Folded size | 105(L) x 54(W)/mm |
| Speed | 1200 - 1600 sheets/min. |
| Jumbo roll width | 420mm |
| Jumbo roll dia. | Max. 1500mm φ |
| Jumbo roll core dia. | 76.2mm (3") |
| Converting web | 2 ply of 12.5～16 g/m2 |
| Air Consumption | Air Source 6kg/cm2 |
- One unit of slitter.
- One unit embossing device: Steel/Steel roller (Male to Female).
- Horizontal suction folder.
- Tap lock component makes maintenance easily.
- Automatic tension controller.
- With inching.
- With timing belt driving.
- Alignment and conveying device.
Auto Pocket Facial Tissue Wrapping Machine
| Packing type | Pillow type |
| Bag size | 120(L)x70(W)x10-20(H)/mm |
| Wrapping Speed | 120-160 bags/min. (varied by terms & conditions) |
- Packing Forming: former 's width and height conform with the substance of contents in package.
- Packing size: It is essential that the buyer send the raw material to check the height accurately
- Film thickness: 0.035~0.05mm Film roll dia.: Max. φ 340mm
