Tissue Manufacturing Machine - AN-57122 + AN-82600

Tissue Manufacturing Machine

Item No.: AN-57122 + AN-82600
Supplier Details
A-NEW Industrial Co. Ltd.
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom: 51 Products

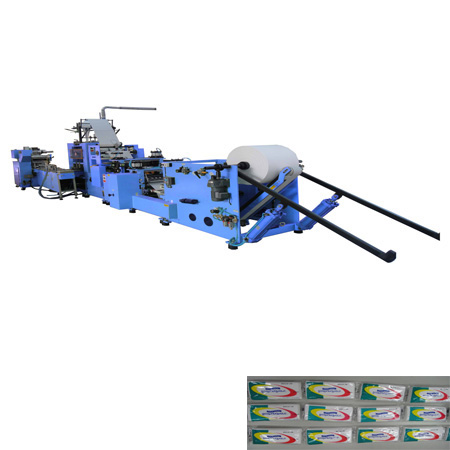

Fully Automatic Line Of Pocket Tissue

Pocket Facial Tissue folding Machine
Sheet size 210(L) x 210(W)/mm
Folded  size 105(L) x 54(W)/mm
Speed 1200 - 1600 sheets/min.
Jumbo roll width 420mm
Jumbo roll dia. Max. 1500mm φ
Jumbo roll core dia. 76.2mm (3")
Converting web 2 ply of 12.5～16 g/m2
Air Consumption Air Source 6kg/cm2
  1. One unit of slitter.
  2. Horizontal suction folder.
  3. One set of air lifter for jumbo roll.
  4. Driving belt for jumbo roll ( auto pneumatic control).
  5. Automatic slow down device before jumbo roll used-up gradually.
  6. Control: PLC, human-machine interface, touch screen.
  7. Automatic transfer & stacks separating.

Auto Pocket Facial Tissue Wrapping Machine
Packing type Pillow type
Bag size 120(L)x70(W)x10-20(H)/mm
Wrapping Speed 120-160 bags/min. (varied by terms & conditions)
  1. Finished product output device.
  2. Packing Forming: former 's width and height conform with the substance of contents in package.
  3. Packaing materia: OPP, PET, Aluminum Foil Complex Film and film with coating or laminating treatment being suitable for heat sealing.

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Tissue Manufacturing Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
