Fully Auto T Shirt Bag Machine
| Item No.: | STP-V2S-2 & STP-VS-2 Series |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products

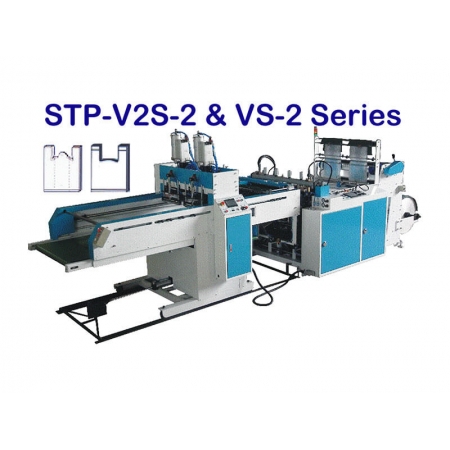

High Speed Fully Automatic 2 Track Hot-cut
T-Shirt Bag Making Machine with Air Tension control
MACHINE FEATURE:
SPECIFICATIONS: P.S. Customization could be available.
T-Shirt Bag Making Machine with Air Tension control
MACHINE FEATURE:
- High speed operation. Capacity : 500 pcs/min. ( 2 lines)
- 2 sets servo system with 2 mark sensor, can produce 2 lines printed T-shirt bag.
- Turn-up Sealing bar design, easy to clean and maintain.
- Hot-cut sealing with 4 temperature controllers; the sealing keep high quality.
- Feed auto speed control by inverter and air tension control.
- Block or no film auto stop; no film pre-connect device make film change faster.
- Automatic punch machine with fold device.
- Easy opration by H.M. I. and P.L.C. control in a glance.
- Optional--Heavy duty lifting auto unwind and Air shaft easy to put film roll.
SPECIFICATIONS: P.S. Customization could be available.
| Model | Bag Width line × W (max) |
Bag Length/ Film thickness |
Max-Cutting of Punch |
Capacity (pieces/min) |
| STP-800V2S-2 | 2 x 360 | 300~700 / 0.010~0.035 |
Thickness of pile Max. 20 mm |
Max. 500 (2 lines) |
| STP-1000V2S-2 | 2 x 460 | 300~700 / 0.010~0.035 |
Thickness of pile Max. 20 mm |
Max. 500 (2 lines) |
| STP-1200V2S-2 | 2 x 560 | 300~700 / 0.010~0.035 |
Thickness of pile Max. 20 mm |
Max. 500 (2 lines) |
| STP-800VS-2 | 2 x 360 | 300~700 / 0.010~0.035 |
Thickness of pile Max. 20 mm |
Max. 400 (2 lines) |
| STP-1000VS-2 | 2 x 460 | 300~700 / 0.010~0.035 |
Thickness of pile Max. 20 mm |
Max. 400 (2 lines) |
| STP-1200VS-2 | 2 x 560 | 300~700 / 0.010~0.035 |
Thickness of pile Max. 20 mm |
Max. 400 (2 lines) |
- Specifications are subject to change without notice.
