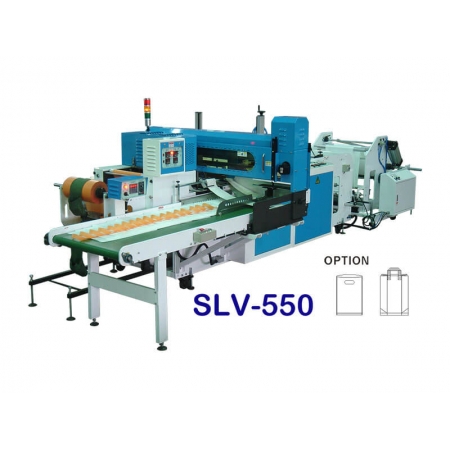

Fully Auto Bottom Seal Shopping Bag Machine
Item No.: | SLV-550 |
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom:
44 Products
Fully Automatic Bottom Seal Shopping Bag Making Machine
MACHINE FEATURE:
BOTTOM SEAL MODEL
Production Speed:50 Bags/min
Optional Equipment:
SPECIFICATIONS: P.S. Customization could be available.
MACHINE FEATURE:
BOTTOM SEAL MODEL
Production Speed:50 Bags/min
Optional Equipment:
- Air Compressor:10HP
- Air shaft
- Equipped with labor-saving on-load mechanism and an infeed table whose tension is automatic controlled.
- EPC device stabilizes the film in-feeding position.
- Stand-up shopping bags available by stand-up sealing device.
- Special sealing device creates highly strong sealing. Easy and safe maintenance promotion by the rotary seal knife design.
- Production flow is straightened out, greatly saving on space occupation.
- Graphic control panel provides clear and quick understanding for operation at a glance.
SPECIFICATIONS: P.S. Customization could be available.
Model | Making Bag Size(mm) | Max. Production Speed (bag/min) |
Air supply Required | Power Required | Machine Size L x W x H(M) |
|||||
Length | Width | Thickness | ||||||||
HDPE | LDPE | HDPE | LDPE | HDPE | LDPE | |||||
SLV-550 | 400~650 | 400~650 | 350~550 | 350~550 | 0.04~0.08 | 0.06~0.08 | 30~50 | 0.6~0.8Mpa 400L/min | 7.0KW | 6.8x2.0x2.2 |
- Specifications are subject to change without notice.
