Cyclone FPGA

Item No.:

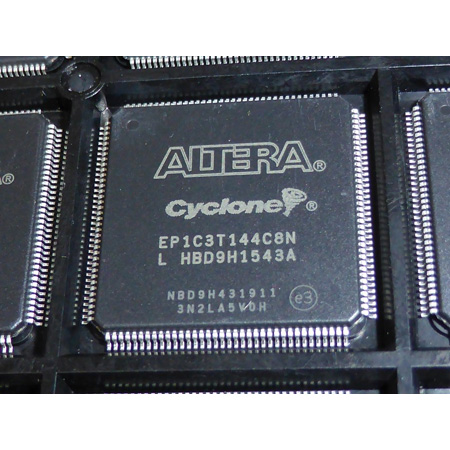

EP1C3T144C8N

Supplier Details

Country: Taiwan

City: Taipei

Address: 11493 8F, No.79, Chow Tze St

TEL: +886-2-55825588

Fax: +886-2-55805500

Online Showroom: 78 Products

FPGA

Cyclone FPGA
Description: The Cyclone® field programmable gate array family is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process.
Features:
- 2,910 to 20,060 LEs, see Table 1–1
- Up to 294,912 RAM bits (36,864 bytes)
- Supports configuration through low-cost serial configuration device
- Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards
- Support for 66- and 33-MHz, 64- and 32-bit PCI standard
- High-speed (640 Mbps) LVDS I/O support
- Low-speed (311 Mbps) LVDS I/O support
- 311-Mbps RSDS I/O support
- Up to two PLLs per device provide clock multiplication and phase shifting
- Up to eight global clock lines with six clock resources available per logic array block (LAB) row
- Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM
Delivery time: 5-7days from distributor
Payment: T/T in advance
