Four-Wheel Servo Capper
| Item No.: | CW-415S |
Supplier Details
Country: Taiwan
City: Taiwan
Address: No.15, Ln. 316, Guangxing Rd., Bade City, Taoyuan County 334, Taiwan (R.O.C.)
TEL: +886-3-3689806
Fax: +886-3-3689807
Online Showroom:
23 Products

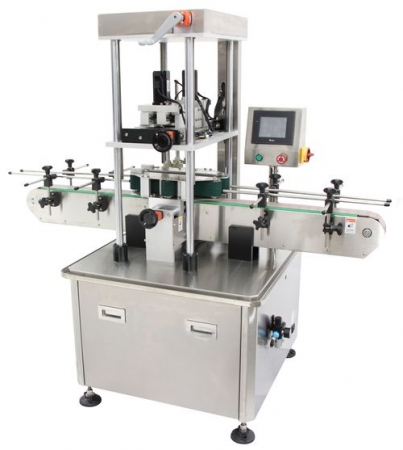

Four-Wheel Servo Capper
Model No.: CW-415S
High Speed in-line capping machine which can be customised to suit the application. It can be integrated into an existing line or supplied as a self contained unit with in-feed, out-feed systems.
FEATURES:
1.Servo motor torque capping heads
2.PLC Control system combined with HMI(touch screen)
3.Speed and torque can be adjusted independently
4.Emergency stop and Three -color indicate light
5.Continuous capping 「No Bottle,No Cap」Design
6.Heavy-duty conveyor by MCC slat top-chain
7.Four wheel capping head, available for all kinds of cap
8. 20 slots memory recall
9.Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
OPTIONS:
1.Bottle infeed and outfeed accumulation tray
2.Customized star wheel for bottle position
3.Door-open auto-stop comply with safety operation
4.Turnkey linkage with capper, labeler and other in-line systems
SPECIFICATIONS:
1.Cap type：Screw and press cap
2.Standard Cap Size：25mm – 60mm O.D
3.Capping Speed：30 ~40 Bottles/min
4.Air Requirements：90 PSI @ 3 CFM6Kg
5.Power：single phase 110/220VAC, 50/60Hz
AutoPack Co., Ltd.
https://www.autopack.com.tw
Filling/Capping/Coding/Labeling/Tablet Counting/Turnkey System/Automation
E-mail: info.autopack@gmail.com
TEL: +886-3-3689806
Fax: +886-3-3689807
Address: No.15, Ln. 316, Guangxing Rd., Bade Dist, Taoyuan City 334, Taiwan (R.O.C.)
