Napkin Folding Machine
| Item No.: | AN-33609~AN-33617 |
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom:
51 Products

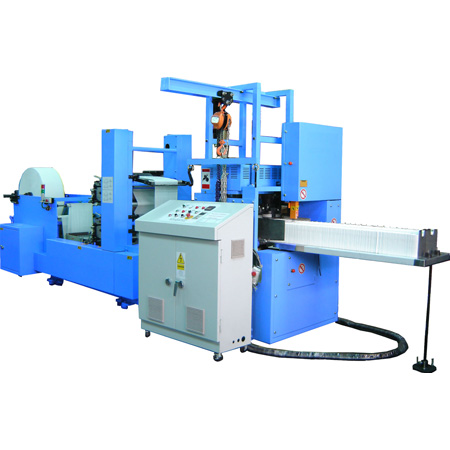

Folder Head Changeable Vertical Rotary Type Paper Napkin Folding Machine
Machine character:
| Model No. | AN-33609~33612 | AN-33613~33617 | ||
| Sheet size (mm) | 230 x 230 ~ 250 x 250 | 330 x 330 ~ 350 x 350 ~ 380 x 380 | ||
| 280 x 280 ~ 300 x 300 | 400 x 400 ~ 430 x 430 | |||
| Folding shape | 1/4-fold | 1/4-fold | ||
| 1/4 | 1/4 | |||
| Folded size (mm) | 115 x 115 ~ 125 x 125 | 165 x 165 ~ 175 x 175 ~ 190 x 190 | ||
| 140 x 140 ~ 150 x 150 | 200 x 200 ~ 215 x 215 | |||
| Speed | 800~1200 | 600~1000 | ||
| Converting web | 1~3 ply napkin paper | |||
| Jumbo roll width | 230mm / 250mm / 280mm / 300mm | 330mm / 350mm / 380mm / 400mm / 430mm | ||
| Jumbo roll dia. | Max. 1500mm φ | |||
| Jumbo roll core dia. | 76.2mm (3") | |||
Machine character:
- Folder head changeable (for changing production length and width).
- Could plus 1 to 3 color printer by extra charge.
- Could choose point to point, steel to steel, convex to concave or steel to paper embosser.
- Could purchase extra auto transfer interface for the purpose to joint packing machine.
- Band knife auto grinding device (have manual option) match with new type of high speed band saw design.
- Could purchase extra 1 set of Chain Hoist for different sheet size.
- Special embossing pattern will be charged against buyer's requiry.
- Could purchase extra 1 set of Chain Hoist for different sheet size.
- Could purchase Impress cylinder engagement and disengagement for 1 to 3 color printer.
- Could purchase printing result register for 1 to 3 color printer.
- Could purchase Static elimination brush.
- Could purchase Auto Edge Position controller.
- Could purchase folding device to change folding shape.
- Clear unit for running nonwoven specially.
