Paper Napkin Folding Machine
| Item No.: | AN-33609-33617 |
Supplier Details
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom:
51 Products

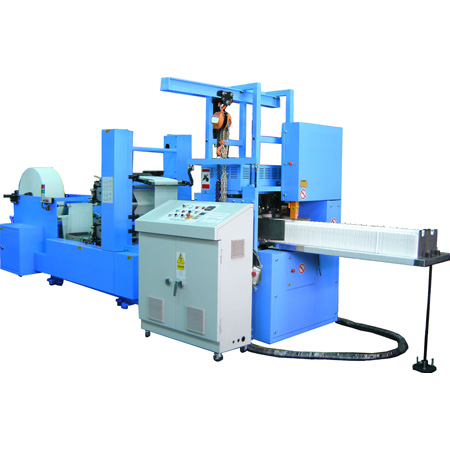

Folder Head Changeable Vertical Rotary Type Paper Napkin Folding Machine
Machine character:
| Model No. | AN-33609~33612 | AN-33613~33617 | ||
| Sheet size (mm) | 230 x 230 ~ 250 x 250 | 330 x 330 ~ 350 x 350 ~ 380 x 380 | ||
| 280 x 280 ~ 300 x 300 | 400 x 400 ~ 430 x 430 | |||
| Folding shape | 1/4-fold | 1/4-fold | ||
| 1/4 | 1/4 | |||
| Folded size (mm) | 115 x 115 ~ 125 x 125 | 165 x 165 ~ 175 x 175 ~ 190 x 190 | ||
| 140 x 140 ~ 150 x 150 | 200 x 200 ~ 215 x 215 | |||
| Speed | 800~1200 | 600~1000 | ||
| Converting web | 1~3 ply napkin paper | |||
| Jumbo roll width | 230mm / 250mm / 280mm / 300mm | 330mm / 350mm / 380mm / 400mm / 430mm | ||
| Jumbo roll dia. | Max. 1500mm φ | |||
| Jumbo roll core dia. | 76.2mm (3") | |||
Machine character:
- Folder head changeable (for changing production length and width).
- Could plus 1 to 3 color printer by extra charge.
- Could choose point to point, steel to steel, convex to concave or steel to paper embosser.
- Could purchase extra auto transfer interface for the purpose to joint packing machine.
- Band knife auto grinding device (have manual option) match with new type of high speed band saw design.
- Web tension control by manual.
- Driving belt for jumbo roll, control up & down by pneumatic.
- One set of air lifter for jumbo roll.
- With inching.
- Auto slow down device before jumbo roll used-up gradually.
- Protector for paper break.
- Can also convert non-woven fabric, air laid paper, gauze……etc. Please advise in advance.
- New design for gripping roller and machine body that make advantages of high speed, stability, low noise and long life.
