Fluorescence Microscope

Item No.:

MF30

Supplier Details

www.microscope-camera-manufacturer.com

Country: China

City:

Address:

TEL: +--

Fax: +--

Online Showroom: 41 Products

Product Details Supplier Profile

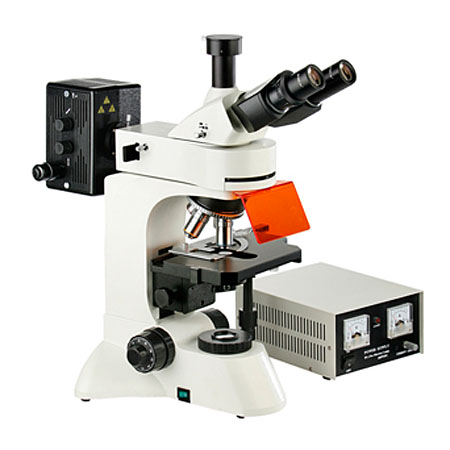

Epi-fluorescent microscope is used for fluorescence microscopy and transmitted bright field observation. It is equipped with no magnification spherochromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear and high contrast picture in your wide view field. The main body design meets with the ergonomics needs and makes you feel comfortable and relaxed in process of operation. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Feat Features

▲ Infinity optical system and modularization design.

▲ Infinity plan achromatic fluorescent objectives enable obtain clearer and brighter image.

▲ Wide-field plan eyepieces: field number Ф22mm.

▲ Coaxial coarse/fine focus system, with tension adjustable and limit stopper , minimum division of fine focusing: 2μm

▲ Transmitted illumination system: Integrated field diaphragm and 6V30W halogen lamp, adding radiator and brightness control.

▲ Epi-illumination system: 100W/DC mercury lamp. Power supply 220V or 110V.

▲ 100% light flux suit for low illuminance microphotography.

Standard Configuration

Model	MF30
Eyepiece	Wide field WF10X(¦µ22mm)
Objective	Infinity plan achromatic objectives
	PL 4X/0.10 (Work distance):19.8 mm
	PL 10X/0.25 (Work distance):5.0 mm
	PLF L40X/0.85£¨spring£©(Work distance):0.42mm(No magnification spherochromatic aberration )
	PL 100X/1.25(Spring, oil) (Work distance):0.36mm
Eyepieces tube	Trinocular, Inclination of 30˚.
Epi-fluorescent illumination system	Power supply unit, 110V or 220V can be selected.
	Mercury lamp is 100W/DC
	Turnplate Epi-fluorescence illuminator (UV.V.B.G filters system)
Focus system	Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
Nosepiece	Quintuple(Backward ball bearing inner locating)
Stage	Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)
Transmitted illumination system	Abbe condenser NA.1.25 Rack & pinion adjustable
	Blue filter and Ground glass
	Collector for halogen lamp illumination and integrated field diaphragm
	6V 30W halogen lamp, adjustable brightness

Optional accessories

Name	Sort/Technique parameter
Eyepiece	Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div
Objective	Infinity plan achromatic objective
Objective	PL 60X/0.80(Work distance):0.46 mm
Filter	Green filter
Filter	Yellow filter
Digital camera	MD10/20/30/50/90
Digital camera	MC15/20/30/50
Camera adapter	CANON(EF) NIKON( F)
